US95 Push Button

Dewhurst's circular shaped US95 braille push button meets all the requirements of the visually impaired. The wide tactile legend can be easily seen from all angles and can be illuminated in a variety of colours. The Braille dots below the legend are Standard English Braille. The pressel background can be either black, providing good contrast with legend and faceplate (US95EN), or stainless steel.

Key features:

• 15mm high tactile legend with Braille
• Legend and halo illumination
• Vandal resistant EN81-71 cat 2
• Large range of pressel legends
• Standard pressels are a stainless steel plate moulded with red or grey polycarbonate

US95 Anti-Bacterial Push Button

Dewhurst's US95-AB White Antibacterial push button is manufactured with antimicrobial protection to help prevent the unwanted growth of harmful bacteria. Bacteria can multiply on lift pushbuttons every twenty minutes. This technology makes the product surface hostile to microscopic organisms, making them unable to live, grow and reproduce. The US95-AB pushbutton also meets all requirements of the visually impaired with standard English braille dots below the tactile legend.



The pressel is made out of white polycarbonate with a 15mm high legend and can be illuminated in a variety of colours.

Key features:

• Protection against bacteria
• 15mm high tactile legend with standard English braille
• Pressel and surround uses silver ion antimicrobial technology
• Vandal resistant – meets EN81-71
• Legend and halo illumination
• Large range of pressel legends to choose from
• Surround is moulded in black polycarbonate plastic
• ISO 22196 antibacterial certification

US96 Push Button

Dewhurst's US96 braille push button meets all the requirements of the visually impaired. The wide tactile legend can be easily seen from all angles and can be illuminated in a variety of colours. The Braille dots below the legend are Standard English Braille. The pressel background can be either black, providing good contrast with legend and faceplate, or stainless steel.

Key features:

• 15mm high tactile legend with Braille
• Legend and halo illumination
• Vandal resistant EN81-71 cat 1
• Large range of pressel legends
• Standard pressels are a stainless steel plate moulded with red or grey polycarbonate

US91-15 Push Button

Dewhurst's US91-15 braille push button meets all the requirements of the visually impaired. As well as the 15mm high tactile legend, Standard English Braille dots are embossed onto the pushbutton. The illuminated tactile legend provides clear identification and the button can be illuminated in a wide variety of colours.

Key features:

• 15mm tactile legend with Braille
• A halo of light between the pressel and surround via a patented hidden recess encircles the pressel and illuminates the legend
• Legend & halo can be constantly illuminated at half intensity, switching to full intensity for indication of position or call acceptance
• Large range of pressel legends
• Matching range includes keyswitches, rocker switches and indicators
• Vandal resistant with stainless steel front
• Meets EN81-1/2, EN81-71 (Category 2), EN81-72, EN81-73, EN60529 (IP54), AS1735 Part12 with H/C surround & dual illumination

US90-15 Push Button

Dewhurst's US90-15 braille push button meets all the requirements of the visually impaired. As well as the 15mm high tactile legend, Standard English Braille dots are embossed onto the pushbutton. The illuminated tactile legend provides clear identification and the button can be illuminated in a wide variety of colours.

Key features:

• 15mm high tactile legend with Braille
• Legend and halo illumination
• Vandal resistant with stainless steel front EN81-71 cat 2
• Large range of pressel legends
• Standard pressels are a stainless steel plate moulded with red or grey polycarbonate

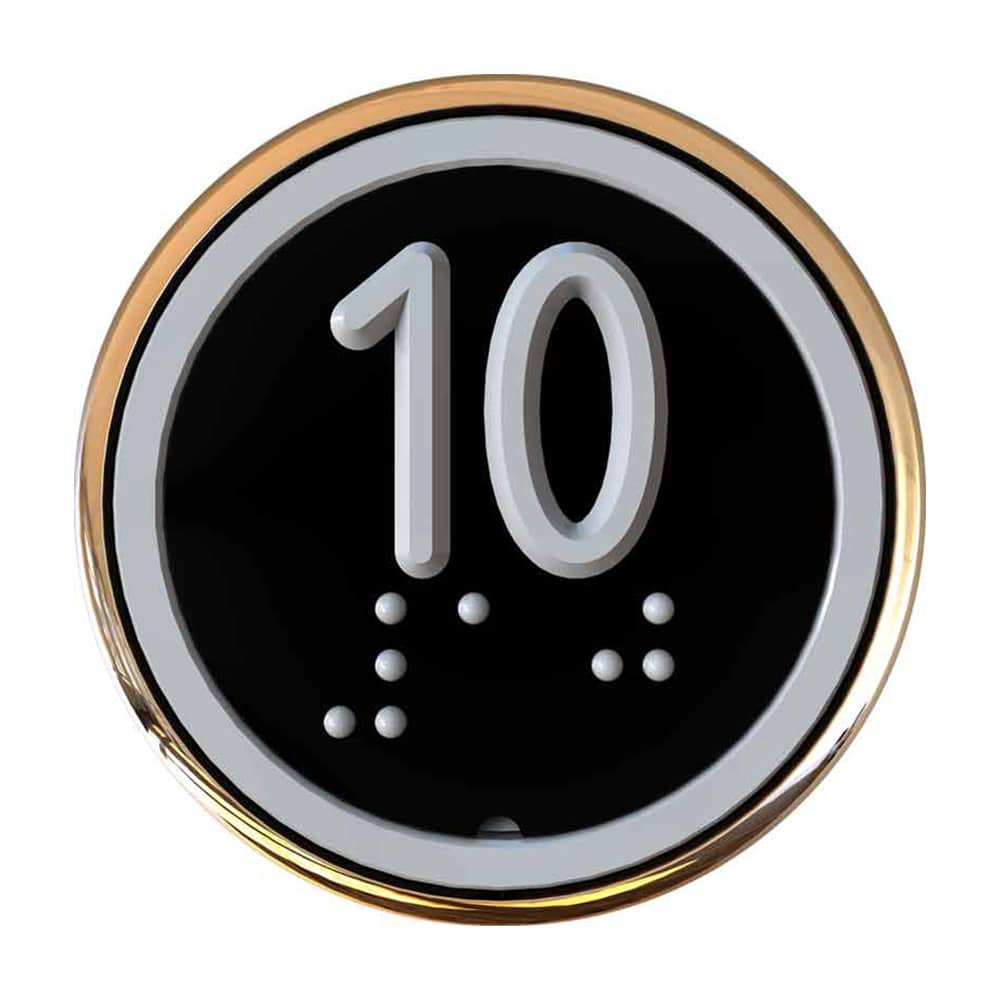

M-20 REB Push Button

Dewhurst's M-20 REB push button with Braille has been designed as a flexible, all purpose lift pushbutton, ideal for apartment buildings, offices, hotels and many other applications. The button fully meets the requirements of EN81-70, having contrast between the legend and the pressel, with the added advantage of Standard English Braille. The M-20 has a very low profile and requires no studs to fix to the faceplate. It also has a wide range of illumination options, with both the legend and halo able to be illuminated separately.

Key features:

• EN81-70 Compliant
• No studding required
• Separate legend and halo illumination
• Large range of pressel legends
• High contrast ratio between pressel and legend
• 15mm high tactile legend + Braille (Moulded through)
• Meets EN81-70

M-20 RSB Push Button

Dewhurst's M-20 RSB push button with Braille has been designed as a flexible, all purpose lift push button, ideal for apartment buildings, offices, hotels and many other lift applications. The button has a very low profile and requires no studs to fix to the faceplate. It also has a wide range of illumination options, with both the legend and halo able to be illuminated separately.

Key Features:

• No studding required
• Separate legend and halo illumination
• Large range of pressel legends
• High contrast ratio between pressel and legend
• 15mm high tactile legend + Braille (Moulded through)

Jumbo Sized Push Buttons

The jumbo range of Dewhurst push buttons were primarily designed for use in larger buildings such as hospitals, airports and shopping centres, where the sheer scale of the building necessitates a larger button.

Whitesmith Solutions supply a complete range of Dewhurst jumbo sized pushbuttons to suit all applications. Available options include:

• Anti-bacterial (white/black)
• Round with or without braille
• Square with or without braille
• EN Class with high contrast

US97 Weatherproof Push Button

Dewhurst's US97-EN push button has been designed to meet the requirements of EN81-70 and pr EN81-40/41 which requires the pushbutton legend to have a height of 15mm. The pushbutton benefits from a brightly illuminated white legend for easy viewing in darkness as well as daylight.

Key features:

• 15mm tactile legend
• High contrast between legend and pressel
• Legend & halo illumination can be controlled individually
• Large range of pressel legendsVandal resistant and weatherproof
• Meets EN81-1/2, EN81-70, EN81-72, EN81-73, EN60529 (IP66 & IP67)

US100 Vandal Resistant Push Button

The US100 push button is the most vandal resistant of the push buttons within the Dewhurst range. The stainless steel pressel is set within a stainless steel bezel, which it bottoms out on, making it highly resistant to impact attacks. Illumination is provided through a small insert moulded lens in the centre of the button. Although the US100 is extremely vandal resistant, its clean lines have made it very popular and it has been used in some of the most prestigious installations around the world as well as some of the harshest.

Key features:

• Classic design
• Highly vandal resistant exceeds EN81-71 category 2
• Pressel/surround assembly is locked to the faceplate
