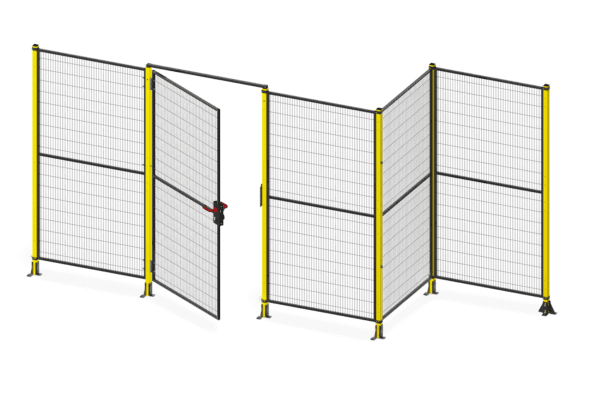

SATECH EasyGuard
EasyGuard is a modular perimeter guarding system that is simple and effective. Two smooth-surface post options, a welded baseplate and the practical clamp assembly make EasyGuard a suitable choice for the protection of most applications.
Practical: The new welded baseplates with 3 anchoring points and the redesigned Clamp reduce installation time up to 25%.
Versatile: Available with 40- or 60 mm posts, EasyGuard can be completed with our wide range of accessories and doors.
Compliance: The EasyGuard Perimeter Guard is designed in compliance with EN ISO 14120 and meets Risk Assessment safety requirements.
Easy to handle: With a structure that’s lightweight yet robust, the Satech framed panel can be easily handled by just one person
Ready to use: The frame comes pre-drilled to allow assembly with nuts and bolts and the installation of brackets, locks and accessories
Anti-climbing: The horizontal wires welded on the inside prevent climbing
Visability: The vertical mesh shape ensures excellent machinery viability in accordance with EN ISO 14120-5.9
Applications: Suitable for a wide range of scenarios including segregation of machines and controllers within the machine room, landing entrance hoarding, escalator hoarding during repairs, counterweight screening, lift pit segregation and more.
Panel dimensions:
Height: 2220mm
Widths: 200mm, 300mm, 700mm, 800, 1000mm, 1200mm, 1500mm
The combination of our 7 standard panels joined together allows to create all the intermediate widths in 100 mm increments.
Post dimensions:
EasyGuard 40: 40x40mm box section, 2240mm high
EasyGuard 60: 60x60mm box section, 2240mm high
Base plate: 140mmx140mm x 5mm
Governor Guarding
Key Features:
- Powder coated
- Each guard consists of 1x inner and 1x outer sheave
- Material type: 2mm per-galvanized mild steel
- Standard dimensions:
390mm (H) x 350mm (W) 160mm (D)
510mm (H) x 610mm (W) 200mm (D)

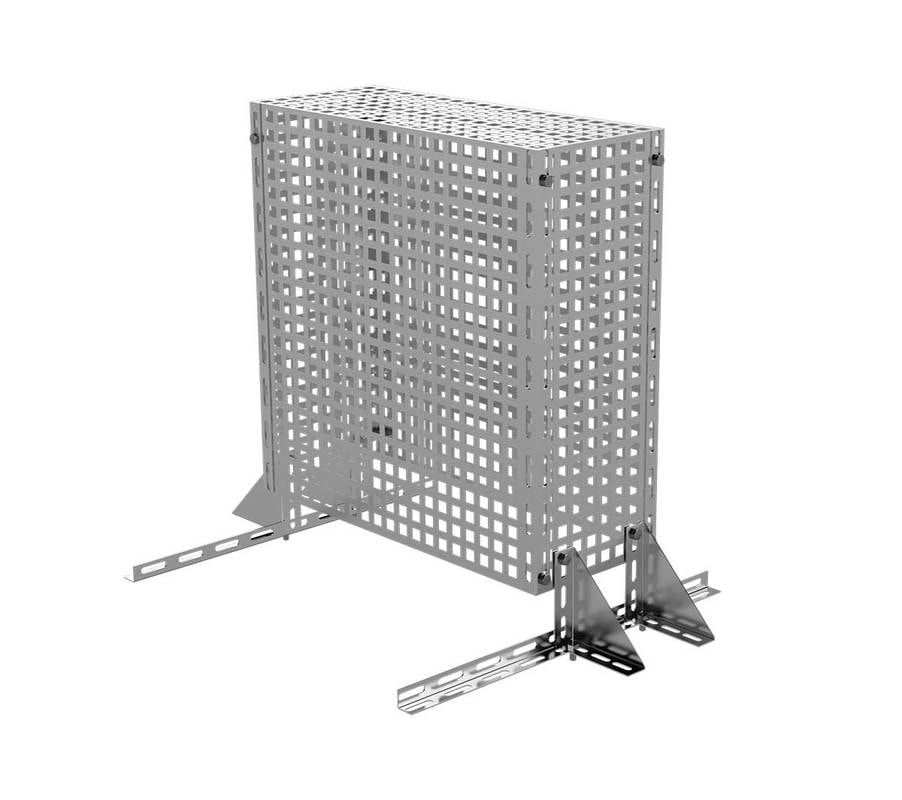

Traction Sheave Guarding
Key Features:
- Customizable for sheave diameters from 360mm to 970mm
- Powder coating option available
