Flexible Travelling Cable & Accessories

Whitesmith Solutions is New Zealand's leading supplier of lift travelling cables, providing a wide range of options for various applications, including security, intercom, CCTV, multimedia display installations, data transmission, and telecommunications.


Our selection includes screened, co-axial, and combination cables to meet diverse needs. Additionally, we supply Cat7, control core cables and combination cables, ensuring comprehensive solutions for all requirements.

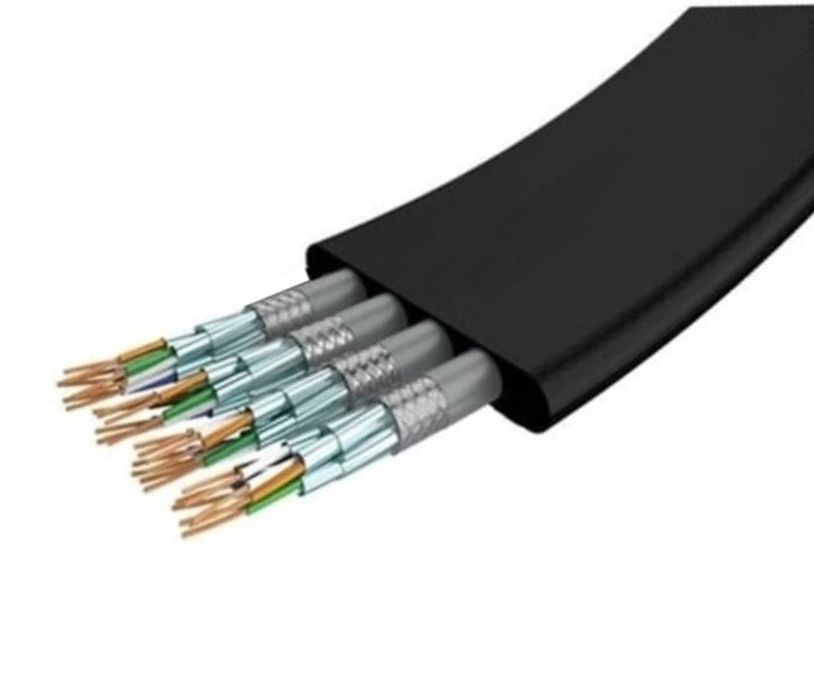

Cat7 Flat Travelling Cable - Unsupported

Key features:

  • Cores: 4x (4x2x0.14)
  • Applications: Security, networking multimedia display installations and data transmission
  • Unsupported
  • 45m (max.) free suspension length
  • 60m (max.) travel height
  • 4.0m/s (max.) travelling speed:
  • Dimensions (approx.): 32mm wide x 8.4mm high
  • Part number: 008002

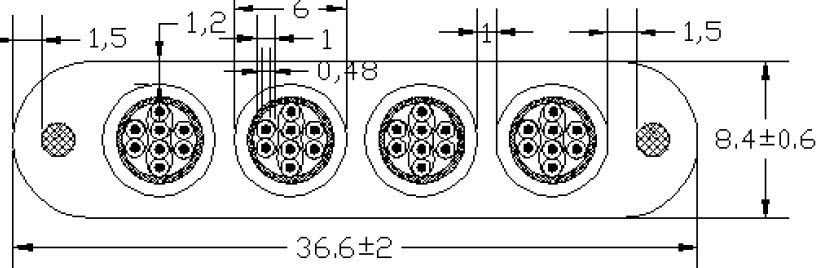

Cat7 Flat Travelling Cable - Supported

Key features:

  • Cores: 4 (4x2x0.14) + 2x steel ropes
  • Applications: Security, networking multimedia display installations and data transmission
  • Supported
  • 80m (max.) free suspension length
  • 150m (max.) travel height
  • 6.3m/s (max) travelling speed
  • Dimensions (approx.): 36.6mm wide x 8.4mm high
  • 008001

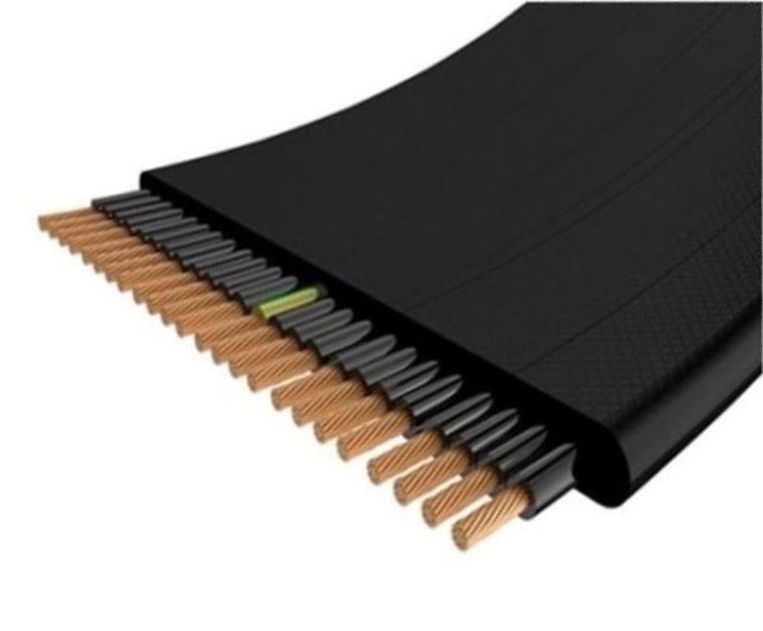

Control Cable - Unsupported

Key features:

  • Cores: 24 x 0.75mm²
  • Core markings: Black with white numbered 1~23, 1x green-yellow
  • Applications: Control core
  • Unsupported
  • 45m (max.) free suspension length
  • 80m (max) travel height
  • 4.2m/s (max) travelling speed
  • Dimensions (approx.): 62.6mm wide x 3.9mm high
  • Part number: 007991

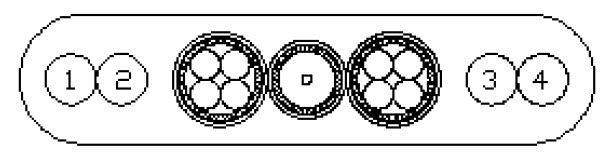

Combination Cable - Unsupported

Key features:

  • Cores: 4x 1.5mm² + 2x (4 x 0.50mm²) Twisted Shielded Quad + 1 x 75ohm Coax
  • Applications: Security, networking multimedia display installations and data transmission
  • Unsupported
  • 45m (max.) free suspension length
  • 80m (max.) travel height
  • 4.0m/s max.) travelling speed
  • Dimensions (approx.): 32.9mm wide x 7.4mm high
  • Part number: 008003

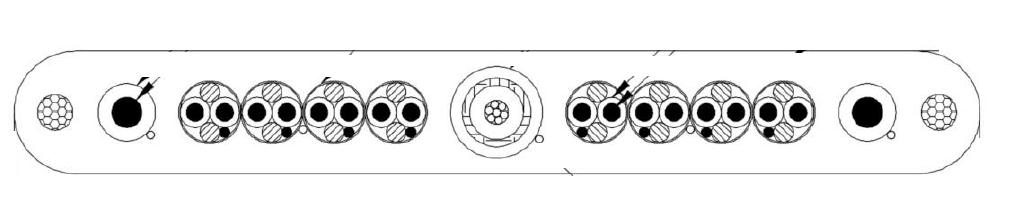

Combination Cable - Supported

Key features:

  • Specification: 2 x 1.5mm² + 8 x (2×0.50mm²) Twisted shielded Pairs +1 x 75 ohm Coax + Steel wire ropes
  • Supported
  • Maximum free suspension length: 80m
  • Maximum travel height: 150m
  • Maximum travelling speed: 6.3m/s
  • Cable dimensions (approx.): 49mm wide x 7.1mm high
  • Applications: Control core, security, networking multimedia display installations, data transmission and telecommunications

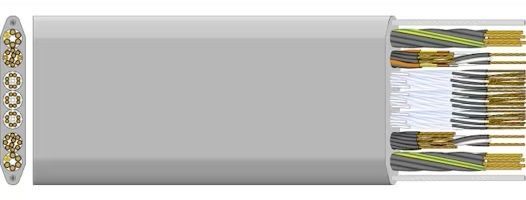

Combination Cable - Supported

Key features:

  • Specification: 10x 2.5mm² + 18x 1.00mm² + 12x 2x 0.75mm² (FTP) + 2 FO G62.5/125 µm
  • Unsupported
  • Maximum free suspension length: 220m
  • Maximum travel height: 400m
  • Maximum travelling speed: 12m/s
  • Cable dimensions (approx.): 32.9mm wide x 7.4mm high
  • Applications: Control core, security, networking multimedia display installations, data transmission and telecommunications
