Whitesmith Solutions supplies high-performance elevator combination travelling cables designed for multi-use lift applications requiring both electrical power distribution and data transmission. These hybrid cables integrate control cores for lift operation alongside screened data, coaxial, fibre optic, or communication cores within a single flexible assembly.
The combination travelling cables shown below represent only a small selection of our most commonly stocked configurations. They highlight typical power-and-data hybrid solutions used for CCTV, intercom systems, access control, emergency phones, shaft communication, and high-speed data transmission within passenger and freight elevators.
In addition to the listed products, we can supply a wide range of alternative cable sizes, core counts, shielding types, flat or round constructions, and custom hybrid configurations to suit new installations, modernisation projects, and replacement applications across all major elevator manufacturers.
If you require a specific combination travelling cable not shown below, contact our team to discuss your project requirements and we will identify the most suitable solution.

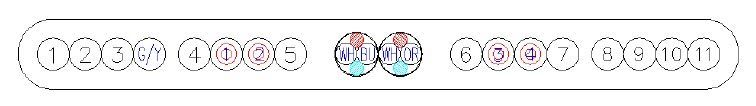

Fibre Optic Flat Travelling Cable
The Datwyler Fibre Optic Travelling Cable is specifically engineered for high-speed data transmission in vertical lift applications. Designed to maintain stable signal integrity under continuous movement, this cable delivers superior performance for modern elevators that require reliable fibre connectivity for advanced systems such as multimedia displays, CCTV, intercom, and building management networks.
Key Features:
- Cable Type: Flat travelling cable
- Support Type: Unsupported
- Cores: 12 x 1.0 mm² + 2 x (2 x 0.5 mm²) control pairs + 4 x Fibre Optic cores (OM2)
- Applications: Data transmission and control
- Maximum Travel Height: 45 m
- Maximum Travelling Speed: 4.0 m/s
- Approx. Dimensions: 56.2mm wide × 5.4 mm high

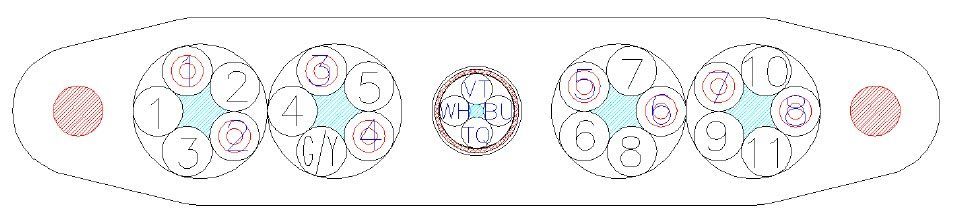

Single Mode Fibre Optic Travelling Cable
The Datwyler Fibre Optic Travelling Cable is specifically engineered for high-speed data transmission in vertical lift applications. Designed to maintain stable signal integrity under continuous movement, this cable delivers superior performance for modern elevators that require reliable fibre connectivity for advanced systems such as multimedia displays, CCTV, intercom, and building management networks.
Key Features:
- Cable Type: Flat travelling cable
- Support Type: Supported
- Cores: 12 x 1.0 mm² + 4 x 0.34 mm² control cores + 8 x Fibre Optic cores (SM)
- Applications: Data transmission and control
- Fibre Type: Single-mode (SM) fibre optic cores
- Support Members: Steel rope Ø2.5 mm
- Maximum Free Suspension Length: 80m
- Maximum Travel Height: 150m
- Maximum Travelling Speed: 6.3 m/s
- Approx. Dimensions: 46.5mm wide × 10.0 mm high

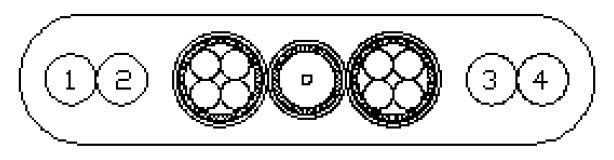

Combination Cable - Unsupported
Key Features:
- Cable Type: Flat travelling cable
- Support Type: Unsupported
- Cores: 4 x 1.5mm² + 2 x (4 x 0.50mm²) Twisted Shielded Quad + 1 x 75 Ω Coaxial core
- Applications: Data transmission and control in vertical lift installations
- Maximum Free Suspension Length: 45m
- Maximum Travel Height: 80m
- Maximum Travelling Speed: 4.0 m/s
- Approx. Dimensions: 32.9mm wide × 7.4mm high

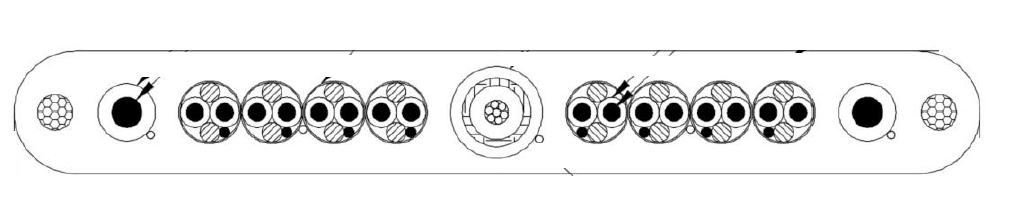

Combination Cable - Supported
Key Features:
- Specification: 2 x 1.5mm² + 8 x (2×0.50mm²) Twisted shielded Pairs +1 x 75 ohm Coax + Steel wire ropes
- Support Type: Supported
- Maximum free suspension length: 80m
- Maximum travel height: 150m
- Maximum travelling speed: 6.3m/s
- Cable dimensions (approx.): 49mm wide x 7.1mm high
- Applications: Control core, security, networking, multimedia display installations, data transmission and telecommunications

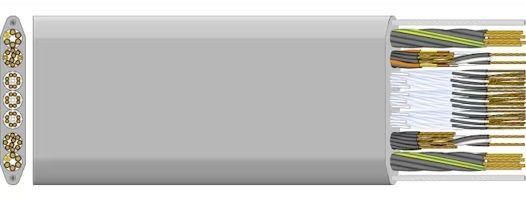

Combination Cable - Supported
Key Features:
- Specification: 10x 2.5mm² + 18x 1.00mm² + 12x 2x 0.75mm² (FTP) + 2 FO G62.5/125 µm
- Support Type: Supported
- Maximum free suspension length: 220m
- Maximum travel height: 400m
- Maximum travelling speed: 12m/s
- Cable dimensions (approx.): 32.9mm wide x 7.4mm high
- Applications: Control core, security, networking, multimedia display installations, data transmission and telecommunications
