Giovenzana GM Series

Giovenzana is widely recognized as a leader in elevator technology and the name that operators associate with security and quality, has created the GM series of inspection boxes which comply with EN81-20 and EN81-50.


The ergonomic design ensures maximum operator safety. Giovenzana designs and implements safety components for the world’s major chain lift manufacturers.


The Giovenzana range includes;


  • Car-top inspection and maintenance control boxes
  • Lift pit inspection and maintenance control boxes
  • Escalator inspection and maintenance control boxes
  • Alarm and emergency control stations
  • Under car signaling devices
  • Limit switches and micro switches
  • Bypass devices and switch disconnectors

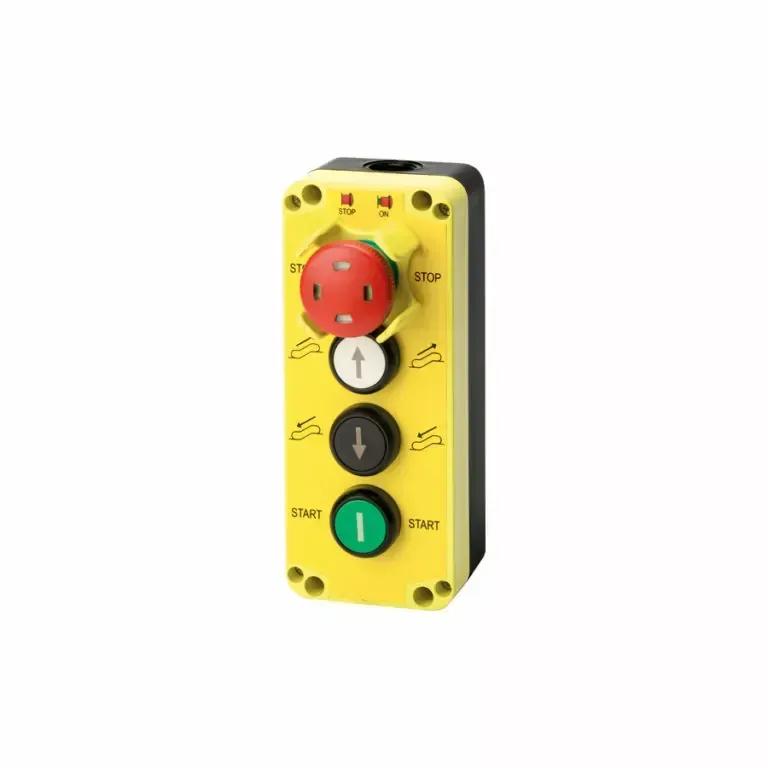

Giovenzana Pendant Controller

Key Features:


  • 1 Emergency stop EN ISO 13850 ø40 push-pull with vision – 1NC
  • 1 Up push button – 1NO+1NC
  • 1 Down push button – 1NO+1NC
  • 1 Start push button – 1NO
  • IP65 Rated

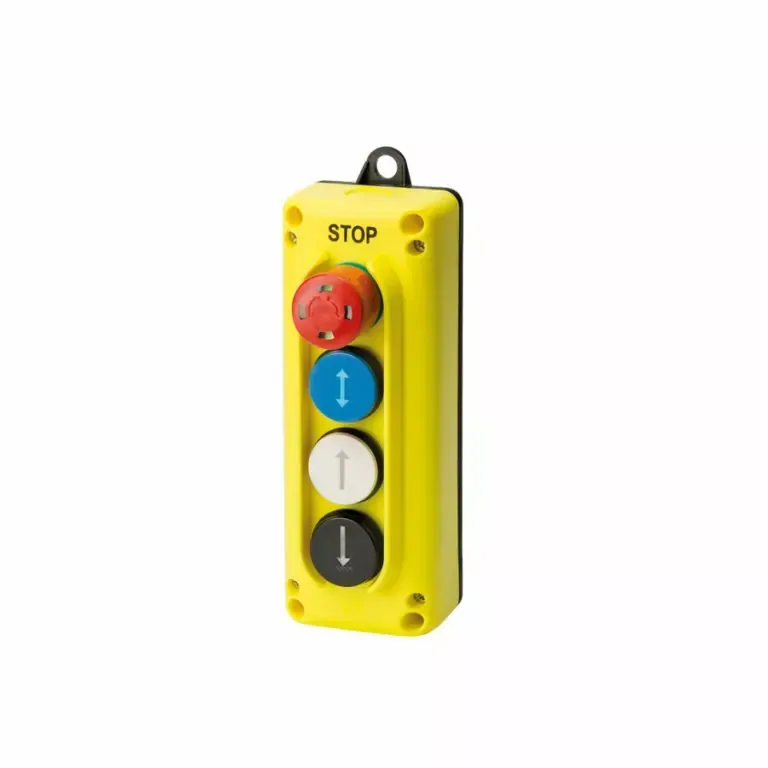

Giovenzana Slim Pendant Controller

Key Features:


  • 1 Emergency stop EN ISO 13850 ø30 twist to release with vision – 1NC
  • 1 Common push button – 1 NO
  • 1 Up push button – 1 NO
  • 1 Down push button – 1NO
  • IP65 Rated

Giovenzana Stop Switch

Key Features:


  • EN81-20 & EN81-50 Compliant
  • 1 NC contact block with spring contacts
  • 1 NO contact block with spring contacts
  • IP65 Rated

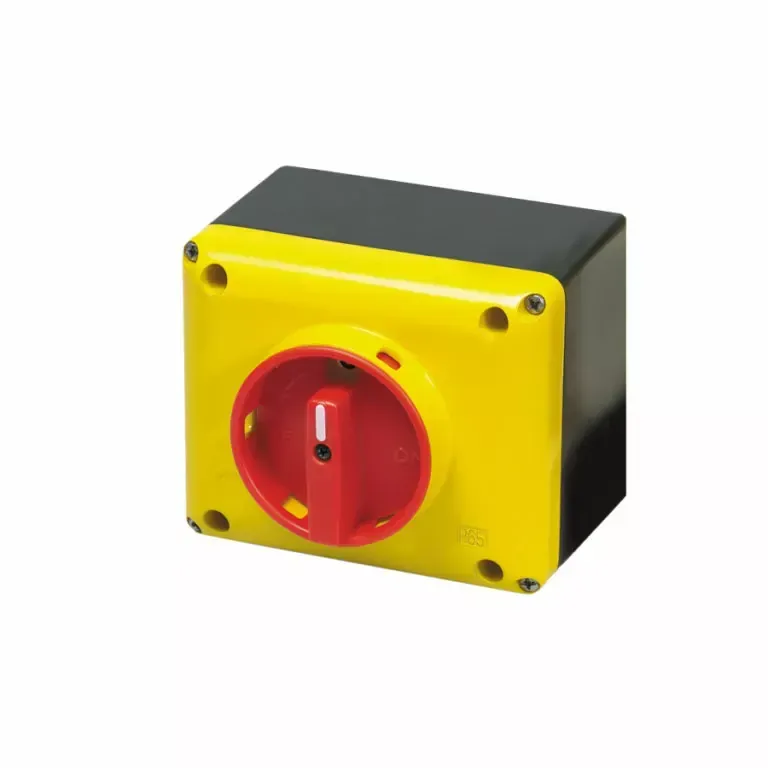

Giovenzana Main Switch

Key Features:


  • Complete device in a thermoplastic enclosure
  • 3 poles
  • Opening in “0” position
  • Arranged for nr. 8 Pg16 cable glands of which nr. 2 on the bottom
  • With locking facility in “0 – OFF” (Max 3 locks)
  • Dimensions: 120x100x85mm
  • Black box – Yellow cover – Red knob

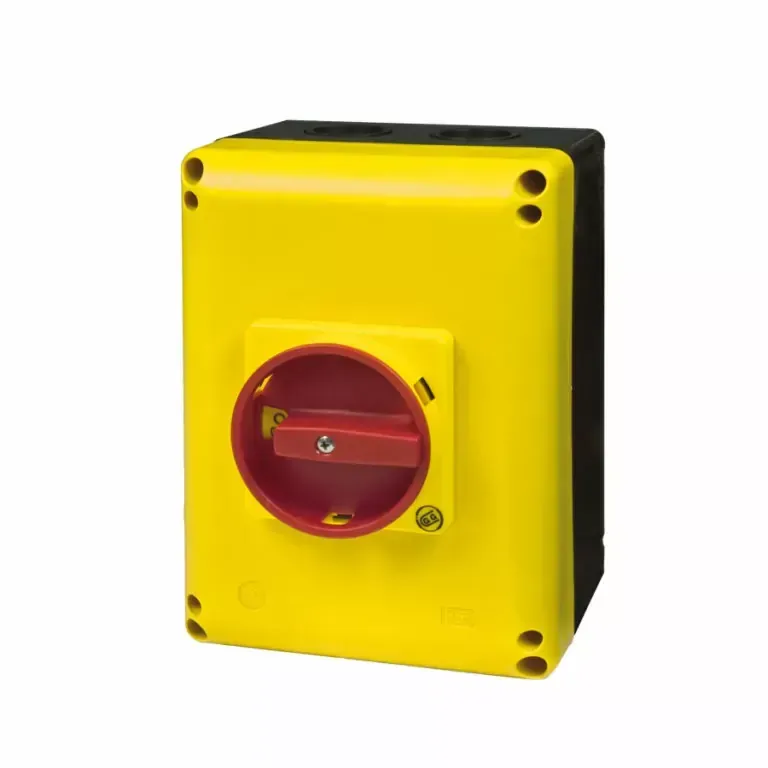

Giovenzana Main Switch

Key Features:


  • Complete device in a thermoplastic enclosure
  • 3 poles
  • Opening in “0” position
  • Arranged with nr. 4 cable glands M25/M32 + nr. 2 closed holes ø22,5 mm on the bottom.
  • With locking facility in “0 – OFF” (Max 3 locks)
  • Dimensions: 130x180x106mm
  • Black box – Yellow cover – Red knob

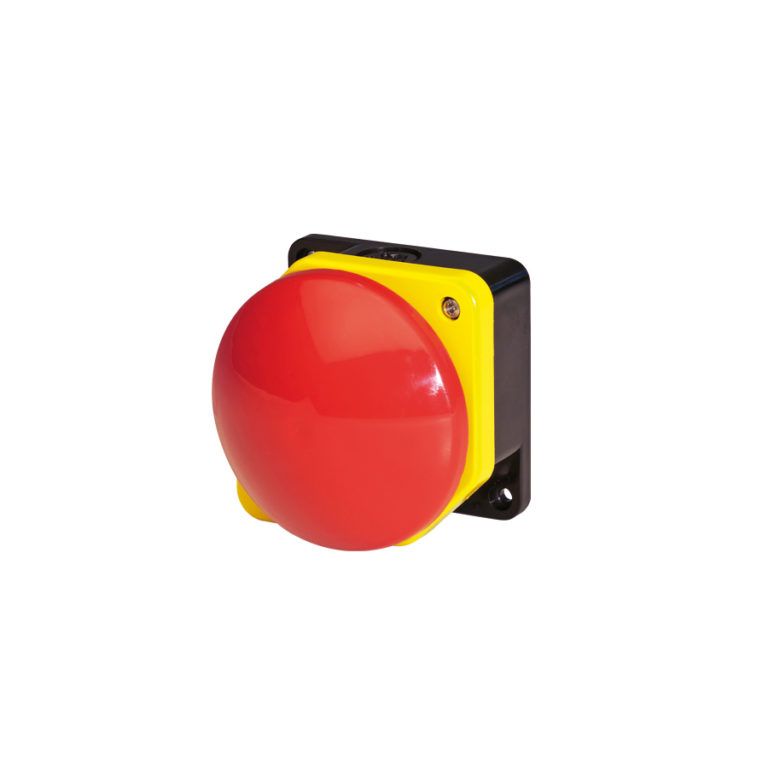

Giovenzana Mushroom Stop Switch

Key Features:


  • Mushroom head
  • Available in red or black
  • IP66 Rated

OEM Replacement Parts

Whitesmith Solutions is New Zealand's leading supplier of OEM replacement parts. We support support all manufacturer types including Otis, Schindler, Kone, TK Elevator and more.

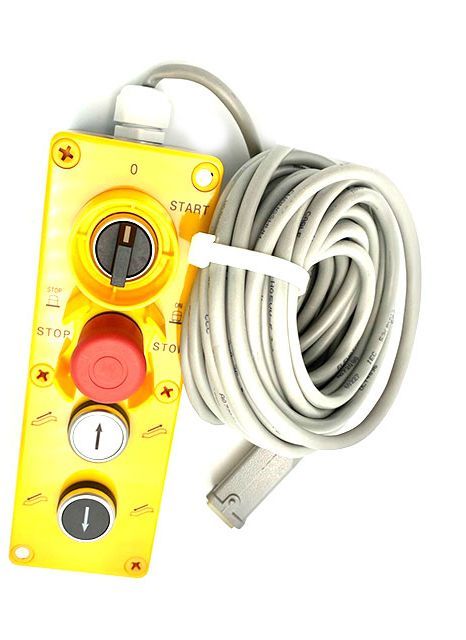

  • Pit pendant controllers
  • Stop switches
  • Truss operation panels
  • Printed circuit boards
  • Key switches
