Lift Buffers
Whitesmith Solutions supply a comprehensive range of type-tested lift buffers, damping elements, buffer support stands and spacer plates for various applications within your lift system.

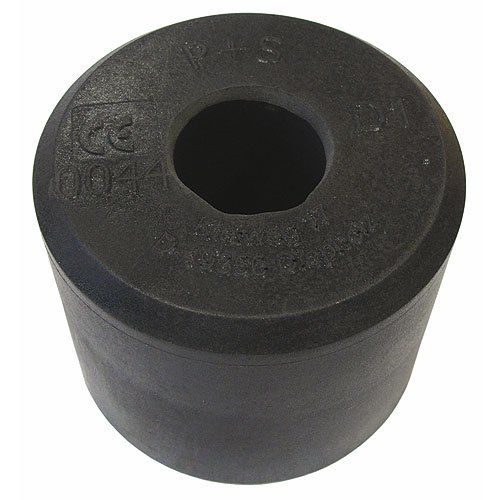

- Polyurethane buffers
- Foam buffers
- Hydraulic buffers
- Buffer support stands
- Buffers spacers
- EN81-20/50 complaint options
- EN81-1/2 compliant options
Buffer Support Stands
The telescopic buffer supports are excellently suited for new installations, modernisation and pit refurbishment.
The exact height can be adjusted in the pit. The buffer height can also be modified, e.g. if the distance, which the lift can be moved below the lowest landing, is changed.
The buffer supports consist of powder coated steel sheet. The buffer can be screwed to the floor with anchor bolts or it can be fixed in the pit with other stationary parts of the lift.
Key features:
- Maximum charge per support: 2000kg
- Maximum rated velocity: 1 m/s
- Powder coated steel
- Supplied complete with fixings and assembly instructions
- Five height sizes available:
- 193-293mm
- 290-415mm
- 416-716mm
- 696-1.021mm
- 1.005-1.405mm

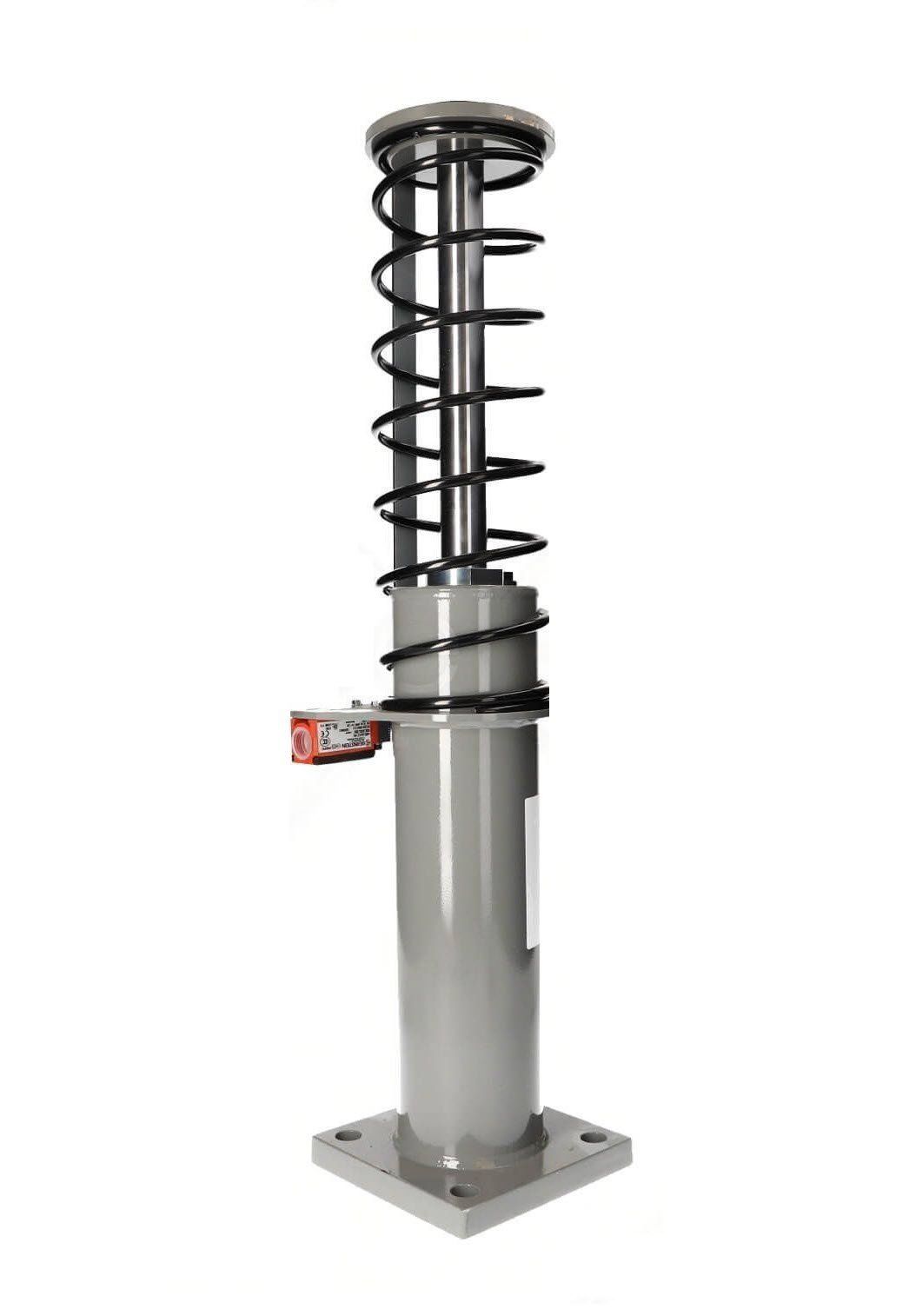

Hydraulic Buffers
Hydraulic elevator buffers are designed to protect people and equipment from forces generated from an impact resulting from equipment failure or operator error.
Whitesmith solutions supply a complete range of hydraulic elevator buffers for every application offering a lighter, stronger, high quality product with minimum life-cycle costs.
Key Features:
- EN 81-20/50 compliant
- IP67 rated
- Meets the demands of the modern lift market
- Robust, durable and lightweight design
- Wide combination of mass ranges and rated speeds available
- Self-contained, maintenance free units
- Pre-filled with oil
- HPL/HPM return to ready position by spring
- HPL/HPM return to ready position by integrated gas spring Mechanical safety switch triggered by the striker
- All documentation and certificates available
- Minimum G-force experience offers increased passenger protection
- Options from 1m/s - 3.7m/s
