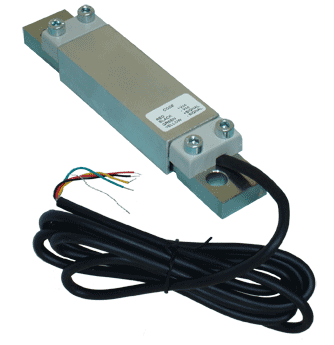

Micelect VG Beam Load Weighing Sensor

The VG beam sensor measures lift load by detecting the deflection of the crosshead beam on which it is mounted, delivering reliable and accurate weight readings in real time.


This robust solution is particularly well-suited for large elevator cabins and freight lifts thanks to its virtually unlimited capacity. The VG beam sensor is ideal for both new installations and modernisation projects where precise load control is essential for safety, energy efficiency, and performance.


Key Benefits:



  • Measures load through crosshead beam deflection
  • Virtually unlimited capacity – ideal for heavy-duty applications
  • Reliable and accurate weight measurement
  • Suitable for passenger and freight lifts
  • Simple integration for new lifts or modernisations
  • Manufactured by MICELECT – trusted load weighing experts

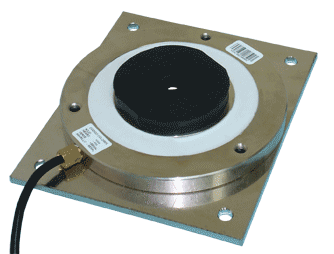

Micelect CCP Bedframe Load Weighing Sensor

The CCP bedframe sensor from MICELECT provides precise load measurement by detecting deflection in the lift car’s bedframe structure. Designed for straightforward installation, it’s an effective solution for both new lift installations and modernisation projects where reliable load control is essential.


This sensor can be used with all types of roping configurations — 1:1, 2:1, and 4:1 — making it an excellent alternative for complex or space-restricted installations where other solutions may not be suitable.


Key Benefits:


  • Measures load through bedframe deflection
  • Compatible with 1:1, 2:1, and 4:1 roping
  • Accurate, real-time weight readings
  • Ideal for passenger and freight lifts
  • Suitable for both new installations and modernisations
  • Easy installation with minimal lift modification
  • Trusted MICELECT engineering for dependable performance

CAB - Load Weighing Sensor

CAB load weighing system provides the most precise solution for controlling the weight in any type of lift.


The reliability of this solution means it is recommended for any installation in which it is necessary to control the load with a high level of accuracy, such as installations which require the detection of “presence” inside the cabin.


This solution is recommended for any new installation, or installations in which a high level of accuracy and reliability is required.


Two different versions CAB-800 and CAB-200 for 800Kg and 200Kg loads.


Key Features:


  • Unparalleled accuracy and reliability
  • No need for maintenance
  • Automatic calibration, meaning no need for test weights
  • Total accurate



Micelect Hitch Plate Sensor

The HPS individual wire rope sensor provides an easy and precise solution for controlling the load in traction lifts by measuring the individual tension on each wire rope.


When used with the MWR-4 or MWR-8 control unit, it becomes the perfect solution for installations where it is necessary to monitor the balance of the rope tensions, or where there is extremely limited headroom.


Another option with LM3D box control and USB-BOX the total weight sum of all the cables will be obtained.

This solution is recommended for any new installation, or installations in which a high level of accuracy and reliability is required.


Key Features:


  • Unparalleled accuracy and reliability
  • No need for maintenance
  • Automatic calibration, meaning no need for test weights
  • Reduced dimensions
  • For any type of wire ropes and flat belts
  • Quick and easy installation (5 Mins.

Micelect Rope Mounted Sensors

Micelect rope mounted sensors provide an easy and precise way to measure the load in traction lifts. Theses sensors are easily installed on a multitude of roping ratios and can be calibrated using the auto-calibration method using the diameter of the ropes.

They are the perfect solution for lift modernisations.


Key Features


  • Easy and precise way to measure the load in traction lifts
  • Easily installed on a multitude of roping ratios
  • Calibrated using the auto-calibration method using the diameter of the ropes
  • Perfect solution for lift modernisations


Available options:


  • ILC2: 2x programmable alarms: Full load & Overload
  • ILC3: 3x programmable alarms: Presence, Full load & Overload
  • ILC-CANopen: The unit uses CANopen® communications protocol and its calibration and configuration are very easy
  • LMC: The LMC wire rope sensor provides an easy and precise solution for controlling the load in traction lifts with all types of roping (1:1, 2:1 & 4:1)
  • WR: The WR individual wire rope sensor provides an easy and precise solution for controlling the load in traction lifts.

Hydraulic Load Sensor

The SPB electronic pressure sensor provides an easy and precise solution for controlling the load in hydraulic lifts. Its quick and easy installation and automatic calibration (5 mins.) make it the perfect solution for both new installations and modernisations.


Key Features:


  • Automatic calibration, meaning no need for test weights
  • Quick and easy installation (5 mins.)
  • 2 programmable alarms: Full load and Overload
  • Integrated display to show weight values in bars
  • EEPROM data memory
