Cat7 Flat Travelling Cable

Unsupported

The Prysmian Cat7 Elevator Travelling Cable is specifically engineered for high-speed data transmission in vertical lift applications. Designed to maintain stable signal integrity under continuous movement, this cable delivers superior performance for modern elevators that require reliable connectivity for advanced systems such as multimedia displays, CCTV, intercom, and building management networks.

Key features:

• Cable Type:  Flat travelling cable
• Support Type:  Unsupported
• Cores:  4 x (4 × 2 × 0.14 mm²)
• Applications: Security, networking multimedia display installations and data transmission
• Maximum Free Suspension Length: 45 m
• Maximum Travel Height: 60 m
• Maximum Travelling Speed: 4.0 m/s
• Approx. Dimensions: 32 mm wide × 8.4 mm high

Manufactured to Prysmian’s exacting standards, this Cat7 flat travelling cable provides excellent signal integrity, durability, and flexibility — ensuring reliable operation in demanding lift environments.

Cat7 Flat Travelling Cable

Supported

The Prysmian Cat7 Elevator Travelling Cable is specifically designed for lifts requiring robust, high-speed data transmission with additional support for longer travel heights and higher speeds. This version includes integrated steel support ropes to ensure safe, stable installation in demanding shaft environments.

Key Features:

• Cable Type:  Flat travelling cable
• Support Type: Supported
• Cores: 4 × (4 × 2 × 0.14 mm²) + 2 × steel support ropes
• Applications: Security systems, networking, multimedia display installations, and data transmission
• Supported Design: Integrated steel ropes for extended free suspension length and travel height
• Maximum Free Suspension Length: 80 m
• Maximum Travel Height: 150 m
• Maximum Travelling Speed: 6.3 m/s
• Approx. Dimensions: 36.6 mm wide × 8.4 mm high

Manufactured by Prysmian, this Cat7 supported travelling cable combines excellent signal integrity with added mechanical strength and durability, providing a reliable solution for high-performance lift installations and modernisations.

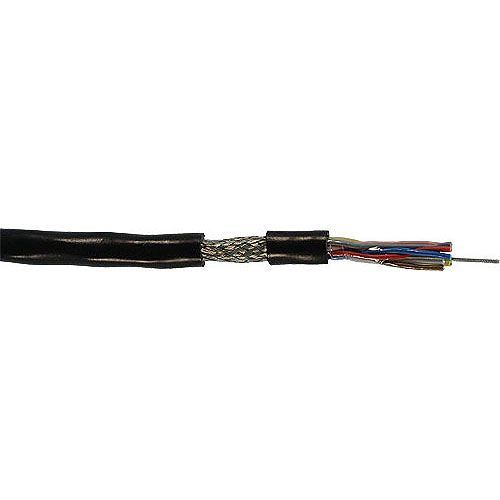

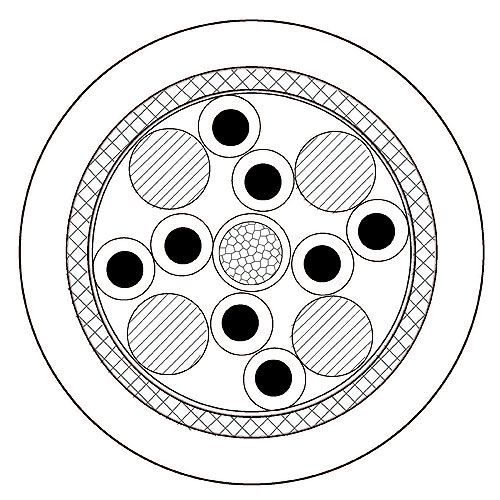

Round Travelling Cable

Supported Round Cable for Lift Emergency Phone Applications

This round travelling cable (4x2x0.34mm²) is purpose-built for lift emergency phone and telephone call system applications. It features a durable PVC sheath, steel carrier element for added strength, and effective shielding for clear, interference-free communication in lift shafts.

Ideal for connecting lift cars to control panels and machine room equipment, this round lift travelling cable ensures maximum flexibility, durability, and long service life — even under constant movement and tight bending radii.

Key Features:

• Cable Type: Round travelling cable
• Applications:
• Support Type: Supported
• Cores: 4 x 2 × 0.34mm²
• Shielding: Shielding braid of tinned copper, covering degree approx. 70%
• Applications: Emergency phones
• Maximum Travel Height: 110m
• Maximum Travelling Speed: 1.6 m/s
• Dimensions: 9.3mm - Ø

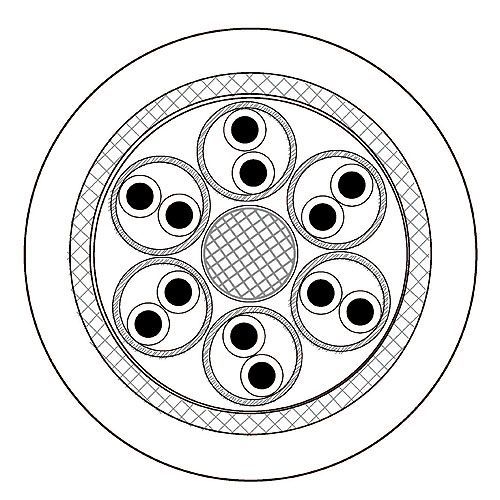

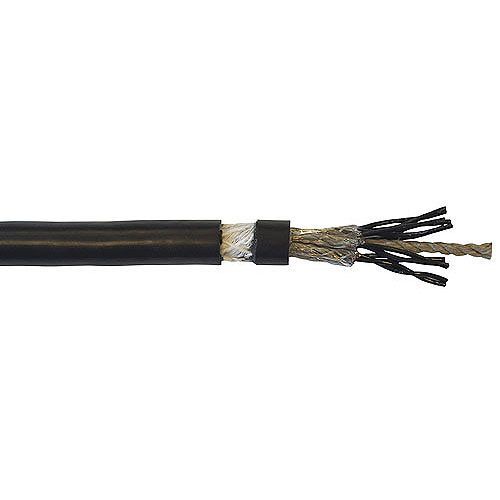

Twisted Shielded Pairs Round Travelling Cable

Unsupported Round Cable for Security & Lift Emergency Phone Applciations

This round travelling cable, with six sets of twisted pairs, is a cost-effective solution for lift security applications such as CCTV, intercoms, and access control, and emergency phones. Its highly flexible and halogen free with effective shielding for clear, interference-free communication throughout the lift shaft.

Designed to handle constant movement and tight bending radii, this cable ensures long service life and reliable performance in demanding lift installations and modernisation projects.

Key Features:

• Cable Type: Round travelling cable
• Support Type: Unsupported
• Cores: 6x(2x0.75mm²)C
• Shielding: Shielding covering degree approx. 80%
• Applications: Security and lift emergency phones
• Maximum Travel Height: 70m
• Maximum Travelling Speed: 1.6 m/s
• Dimensions: 16.0mm - Ø
