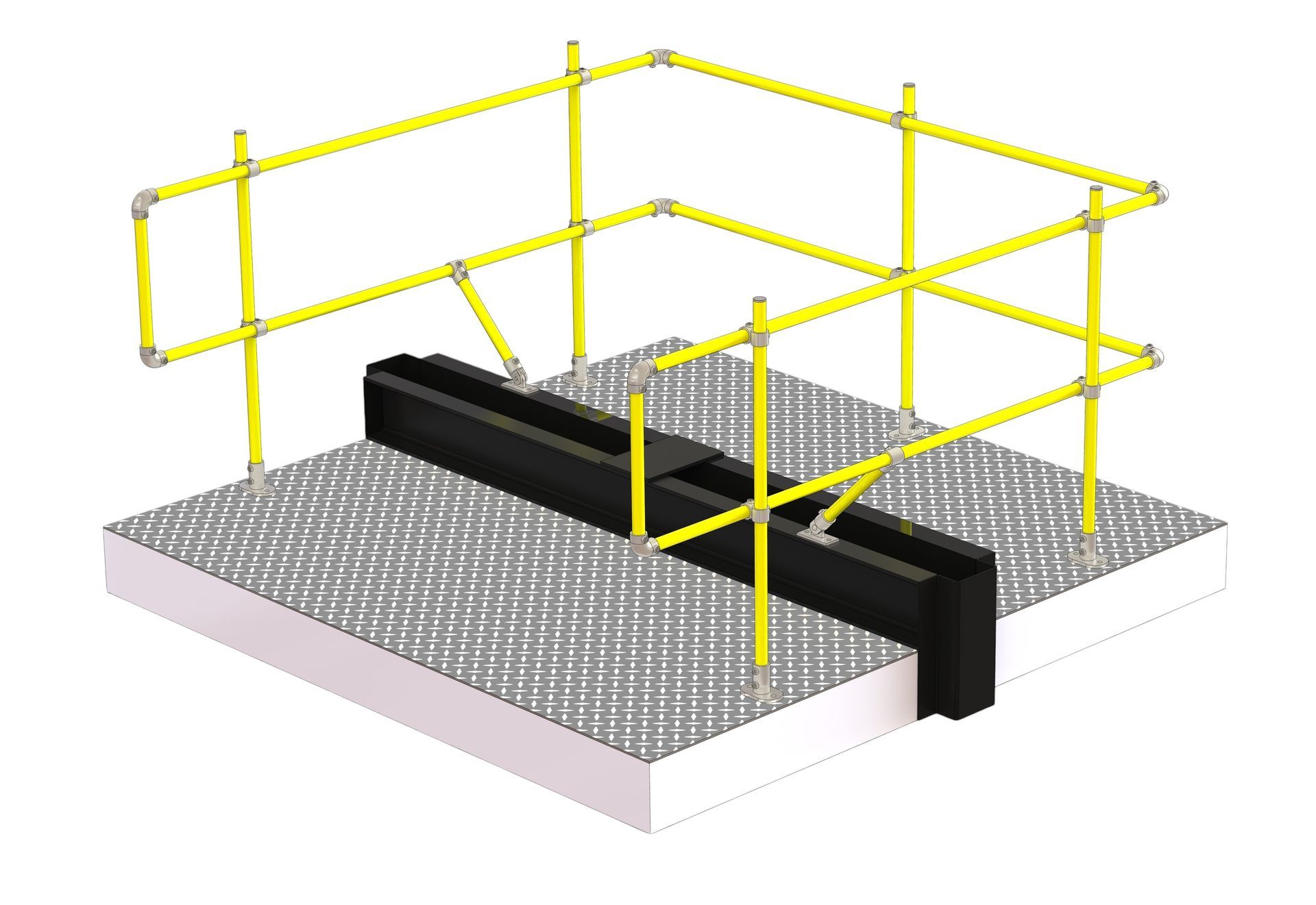

Static Three-Sided Car-Top Safety Barrier Kits
Key features:
- Engineered and manufactured in full accordance with EN81-20 for lift car top safety
- Adjustable kit fabricated from high-strength, lightweight mild steel for ease of handling and installation
- Supplied in standard kit sizes suitable for lift car tops up to 2000mm (L) x 2000mm (W) x 1100mm (H); can be trimmed on-site to accommodate smaller dimensions, with a minimum adjustable height of 700mm
- Designed for direct installation onto Unistrut channels or lift car roof surfaces, accommodating a variety of car top configurations
- Kit includes reinforcement elements to provide additional support for weak or flexing lift car roofs
- Available with optional kick boards for additional perimeter protection

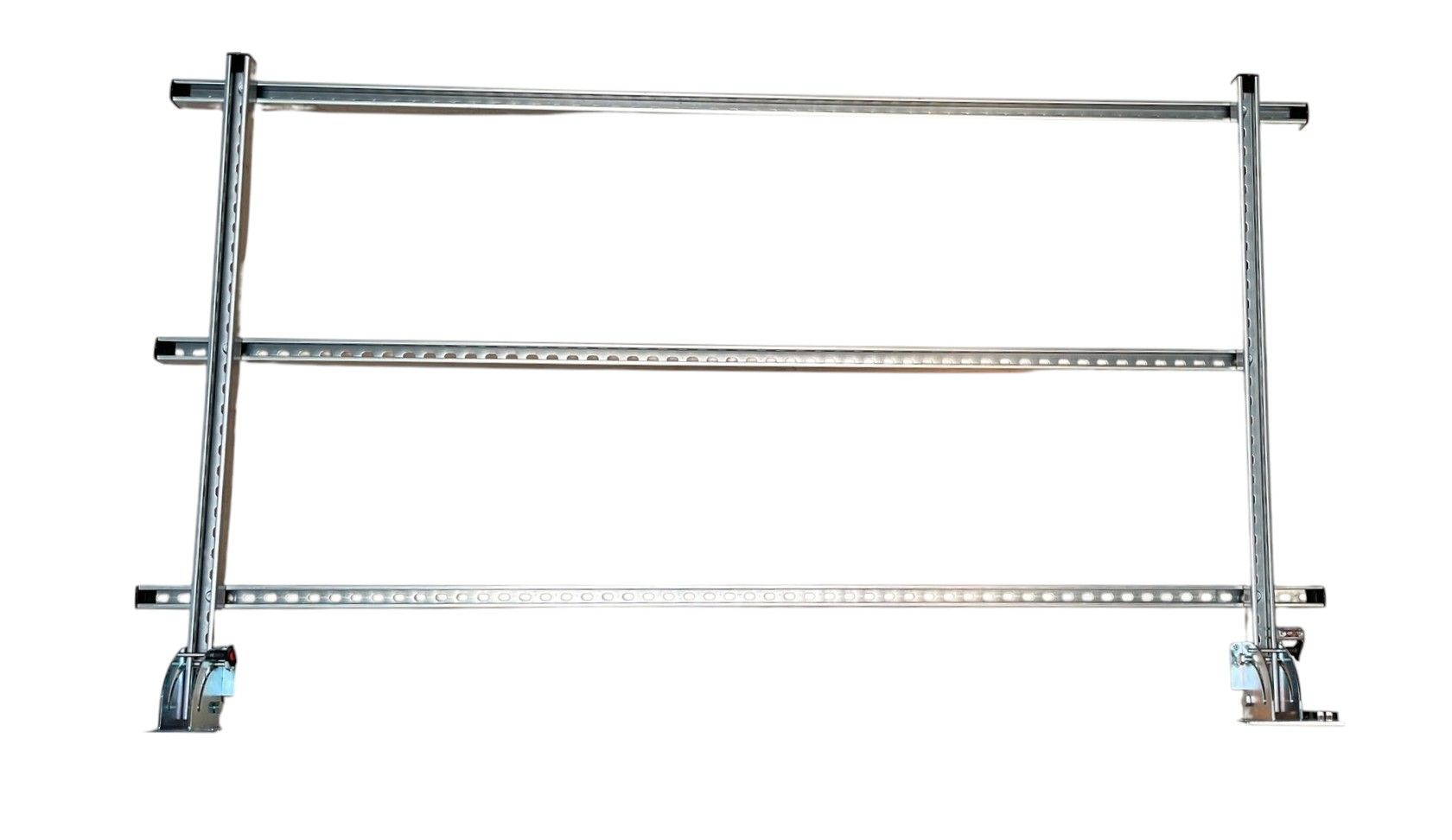

Folding Single-Sided Car-Top Safety Barrier Kits
These foldable barrier systems are designed for lateral installation on either side of the lift car roof. Once deployed, the barriers automatically lock into position, and both the upright and folded states are monitored via integrated safety contacts for enhanced compliance and operational safety.
When mounted opposite each other, the barriers are designed to fold neatly onto one another, saving space during storage or transport.
Installation may require a ceiling-specific mounting kit for proper handrail fixation. Additional structural support measures may also be necessary depending on the car roof design.
Key features:
- Fully compliant with EN81-20 safety standards when installed using the recommended optional fixing kit
- Option 1:
Width: 1300mm (adjustable)
Height: 528mm (folded), 760mm (upright) - Option 2:
Width: 1300mm (adjustable)
Height: 578mm (folded), 710mm (upright) - Barriers automatically secure in place when opened—no manual locking required
- Integrated sensors monitor both folded and upright positions for connection to lift safety circuits
- Compact fold-down profile ideal for lifts with limited car roof space
- Available with optional kick boards for additional perimeter protection
Folding Single-Sided Car-Top Safety Barrier Kits
Designed for lift car top applications where space-saving safety solutions are required, this folding handrail kit provides reliable edge protection and complies with the latest lift safety standards.
Key features:
- Engineered and manufactured in full accordance with EN81-20 for lift car top safety
- Corrosion-resistant galvanised finish ensures durability in demanding environments
- Includes all necessary fixing materials for straightforward installation
- Structural components include 2x vertical support posts and 2x 2m long horizontal guard rails
- Electrical monitoring of barrier position for enhanced safety compliance
- Available with optional kick boards for additional perimeter protection
- Option 1:
Width: 2000mm (adjustable)
Height: 700mm (upright) - Option 2:
Width: 2000mm (adjustable)
Height: 1100mm (upright)

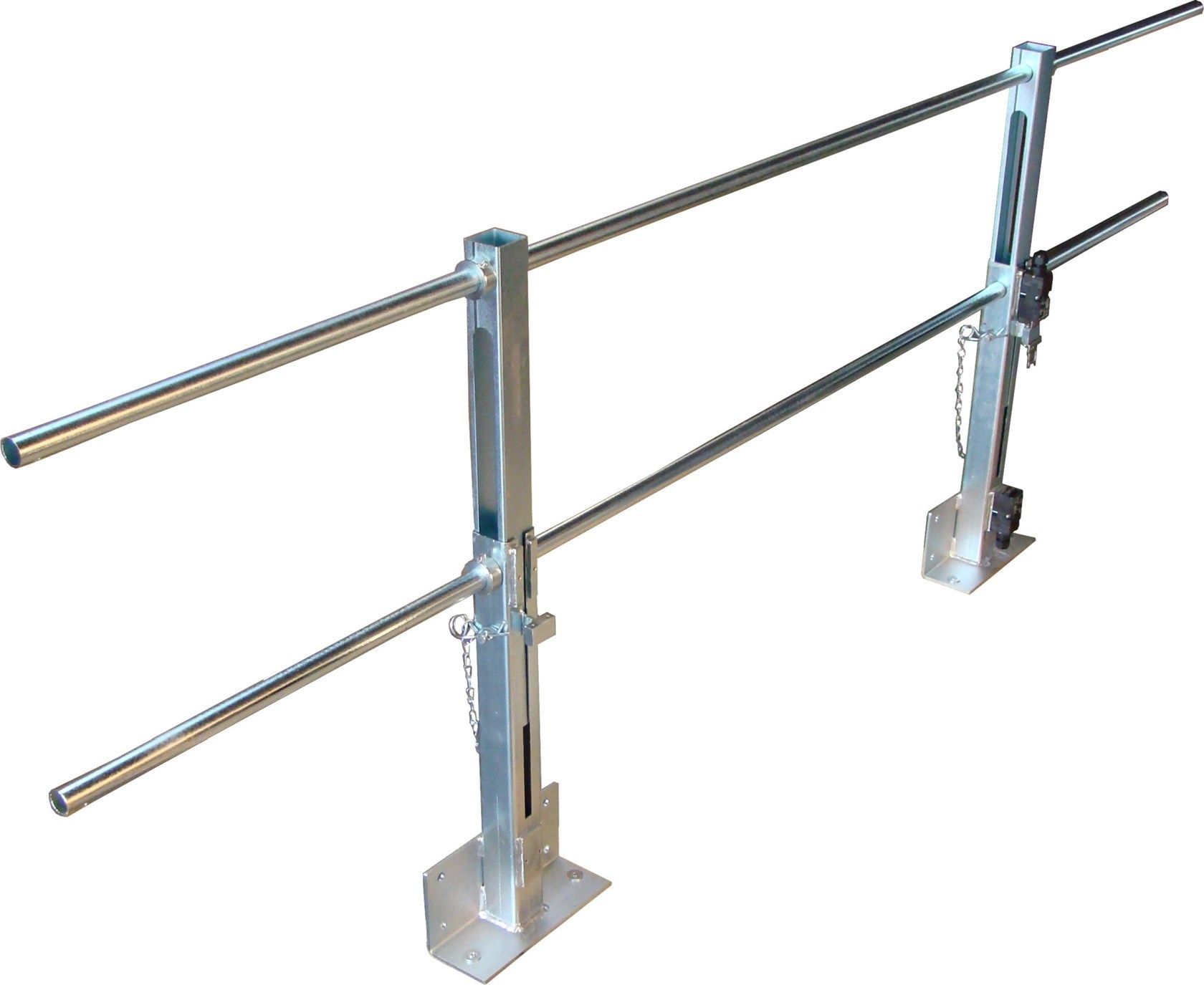

Adjustable Height Single-Sided Car-Top Safety Barrier Kits
This adjustable-height, single-sided safety barrier is designed to provide compliant edge protection for lift car roofs in accordance with EN81 standards. Ideal for installations requiring flexibility, the barrier height can be easily adjusted to suit site-specific conditions.
Key features:
- Engineered and manufactured in full accordance with EN81-20 for lift car top safety
- Corrosion-resistant galvanised finish ensures durability in demanding environments
- Includes all necessary fixing materials for straightforward installation
- Structural components include 2x vertical support posts and 2x 2m long horizontal guard rails
- Electrical monitoring of barrier position for enhanced safety compliance
- Available with optional kick boards for additional perimeter protection
- Option 1:
Width: 2000mm (adjustable)
Adjustable height: 500-700mm - Option 2:
Width: 2000mm (adjustable)
Adjustable height: 700-1100mm
