Achille Vandal Resistant Push Button
Key features:
- Vandal resistant push button with raised legend and braille
- EN81-70 Compliant
- Bezels: Zamak (chrome or gold, pearled nickel, pearled gold, anthracite)
- Pressel: Polycarbonate with stainless steel or gold/black pvd coated finishes
- Raised legend(s) and Braille
- Mounting: the button is put into the cutout (Ø 32,2) from the front and fixed by threaded ring
- Faceplate Thickness: 0,7 mm to 5 mm
- Contacts: 1 micro switch or 2 micro switches
- Wiring: PIN or pre-wired connectors (AMP, JST or minispox)
- Illumination: Led 12V or 24V DC 30mA
- Stroke: 1,2 mm
- Avg. life: 2.000.000 activations
- Degree of protection: IP51 with metal spring/IP54 with silicone spring and o-ring
TLM-X Achille Touchless Push Button
Key features:
- EN81-70 Compliant
- Touchless sensor with integrated IR emitter (850nm and laser emitter
- Activation distance: up to 3 cm
- Bezels: Zamak (chrome or gold, pearled nickel, pearled gold, anthracite)
- Pressel: Polycarbonate with stainless steel or gold/black pvd coated finishes
- Raised legend
- Mounting: the push button is put into the cutout (32,5x32,5mm) and fixed by a snap fitting
- Faceplate thickness: 0,7 mm to 3 mm
- Illuminations: dual colour white/red –double colour red/ blue
- Degree of protection: IP51
- Power supply: 8V DC - 30V DC
- Wiring: Minispox connector with connection cables

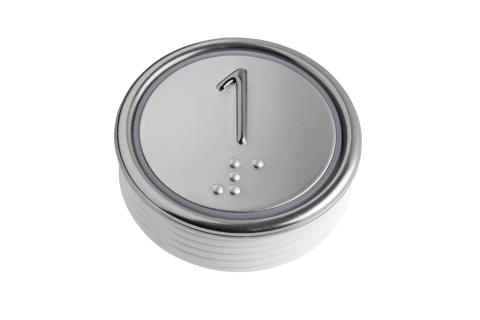

ELIOS Push Button
Key Features
- Body: Stainless steel and nylon push button
- Bezels: Stainless steel (chrome or gold)
- Pressel: Polycarbonate with stainless steel or gold/black pvd coated finishes
- Raised legend(s) and Braille
- Mounting: the button is put into the cutout (Ø 40,2 ) from the front and fixed by threaded ring
- Faceplate Thickness: 0,7 mm to 5 mm
- Contacts: 1 micro switch o 2 micro switches
- Wiring: PIN or pre-wired connectors (AMP, JST or minispox)
- Illumination: Led 12V o 24V DC 30mA
- Stroke: 1,2 mm
- Avg. life: 2.000.000 activations
- Degree of protection: IP51

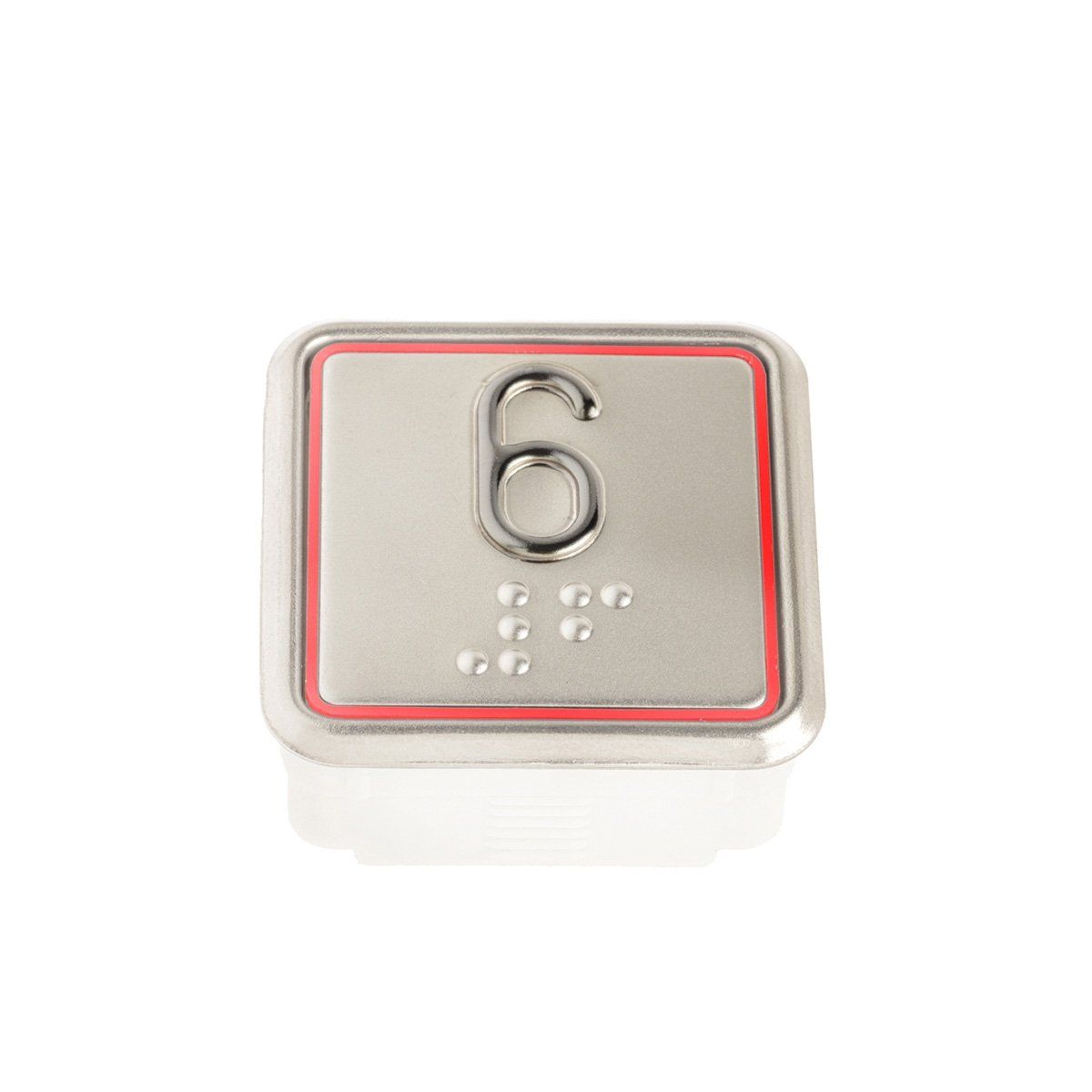

Italo Push Button
Key features:
- EN81-70 Compliant
- Body: Square stainless steel and polycarbonate/nylon push button
- Bezels: Deep drawn bezel in stainless steel (gold pvd coated is an optional)
- Pressel: Polycarbonate with stainless steel or gold/black, pvd coated finishes
- Raised legend(s) and Braille
- Mounting: The button is put into the cutout and fixed by a snap fitting
- Faceplate Thickness: 0,7 mm to 3 mm
- Contacts: 1 micro switch or 2 micro switches
- Wiring: PIN or pre-wired connectors (AMP, JST or minispox)
- Illumination: Led 12V o 24V DC 20 mA
- Stroke: 1,2 mm
- Avg. life: 1.500.000 activations. • Degree of protection: IP51
Vega TL-X Italo Touchless Push Button
Key features:
- EN81-70 Compliant
- Push button with proximity sensor (Laser technology)
- Activation distance: up to 3 cm
- Body: stainless steel and nylon
- Bezel: deep drawn bezel in stainless steel AISI 304
- Front side: polycarbonate with illuminable legend
- Mounting: the push button is put into the cutout (32,5x32,5mm) and fixed by a snap fitting
- Faceplate thickness: 0,7 mm to 3 mm
- Illuminations: dual colour white/red –double colour red/ blue
- Degree of protection: IP51
- Power supply: 8V DC - 30V DC
- Wiring: Minispox connector with connection cables

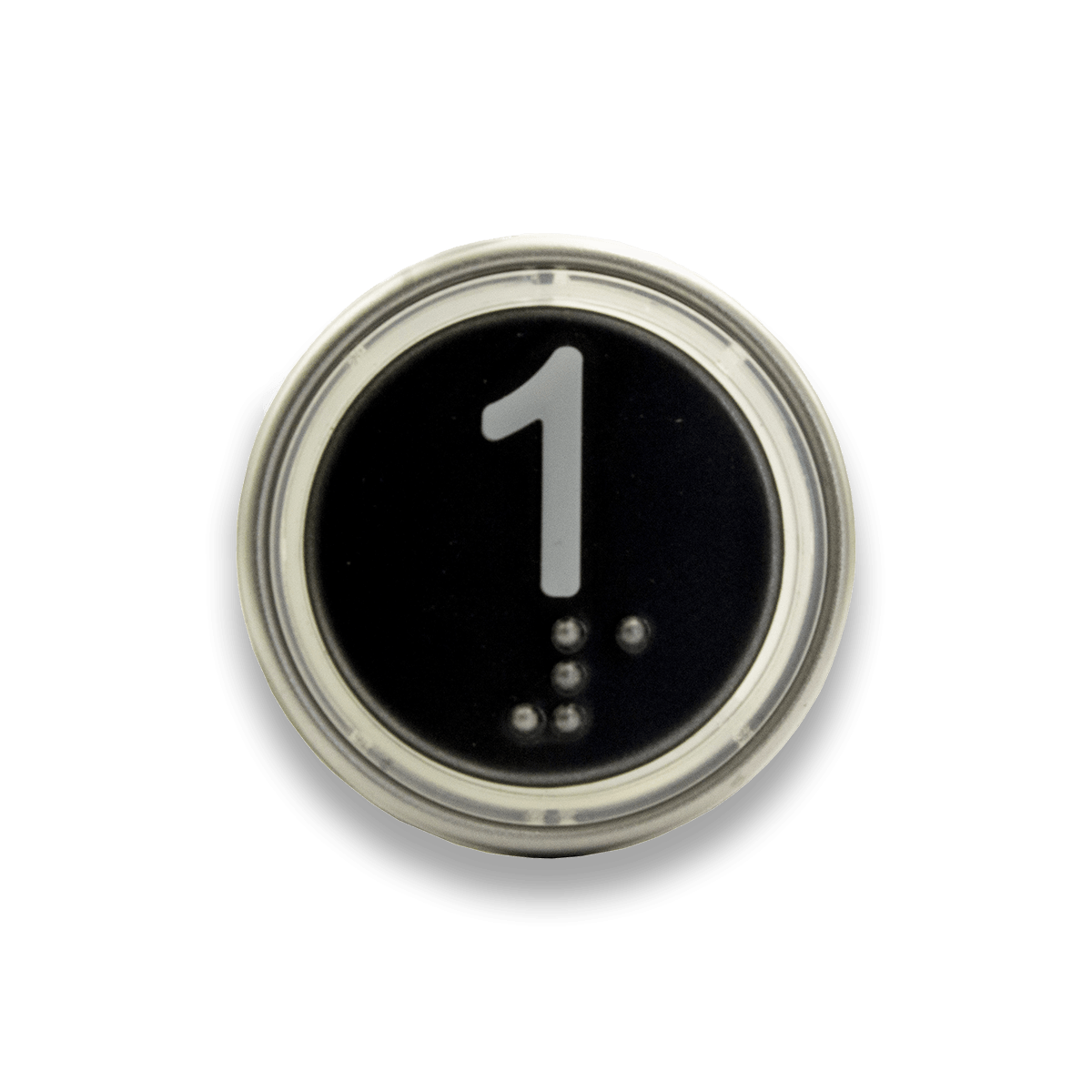

XL Venus Push Button
Key features:
- EN81-70 Complaint
- Body: Nylon push button with raised symbol and braille
- Bezels: Stainless steel
- Pressel: Polycarbonate with stainless steel or gold/black pvd coated finishes; illuminable raised legend(s) and Braille
- Mounting: The button is put into the cutout (Ø 32,2) from the front and fixed by threaded ring
- Faceplate Thickness: 0,7 mm to 5 mm
- Contacts: 1 micro switch
- Wiring: PIN or pre-wired connectors (AMP, JST or minispox)
- Illumination: Led 12V o 24V DC 30mA
- Stroke: 1,2 mm
- Avg. life: 2.000.000 activations
- Degree of protection: IP51
TL-X Venus Touchless Push Button
Key features:
- EN81-70 Compliant
- Push button with proximity sensor (Laser technology)
- Activation distance: up to 3 cm
- Body: ABS
- Bezel: deep drawn bezel in stainless steel AISI 304
- Front side: polycarbonate with illuminable legend
- Mounting: the push button is put into the cutout Ø (32,2mm) and fixed by a snap fitting
- Faceplate thickness: 0,7 mm to 3 mm
- Illuminations: dual colour white/red –double colour red/ blue
- Degree of protection: IP51
- Power supply: 8V DC - 30V DC
- Wiring: Minispox connector with connection cables
