Surface Mount Fixtures
Cost-Effective Lift Fixtures Ready To Install With Minimal Building Work

Whitesmiths’ LiftSpace brand offers a complete range of surface mount lift fixtures — also known as car operating panels (COPs) and landing operating panels (LOPs) — designed to be a cost-effective, modern solution for lift upgrades and new installations. Supplied ready to install, these panels help reduce installation time and labour costs by eliminating the need for wall recessing or extensive building works.

Our surface mount COPs and LOPs deliver reliable performance, stylish design, and straightforward installation for any project — whether you’re fitting out a contemporary interior, modernising a heritage site, or working within a tight budget. Available in a wide variety of finishes and profiles, LiftSpace panels make it easy to achieve the perfect balance of aesthetics, function, and efficiency.

Key Features:

• Supplied ready to install — no specialist wall recessing needed
• Surface mount design for quick, straightforward installation
• Available as car operating panels (COPs) and landing operating panels (LOPs)
• Wide range of finishes and profiles to suit any lift interior
• Durable construction for reliable long-term performance
• Compatible with both new installations and modernisation projects
• Options to match contemporary, heritage, or budget-conscious designs

Benefits:

• Reduced Installation Time: Panels arrive pre-assembled, saving valuable on-site hours
• Lower Project Costs: Minimise labour and building works, cutting overall expenses
• Flexible Aesthetics: Easily match your lift interior to building style and branding
• Minimal Disruption: Perfect for upgrades where structural work must be avoided
• Trusted Quality: Dependable performance backed by Whitesmiths’ LiftSpace expertise

Whatever your project requirements, Liftspace by Whitesmith Solutions provides the design flexibility, material choices, and reliable support you need to deliver lift interiors that stand out.

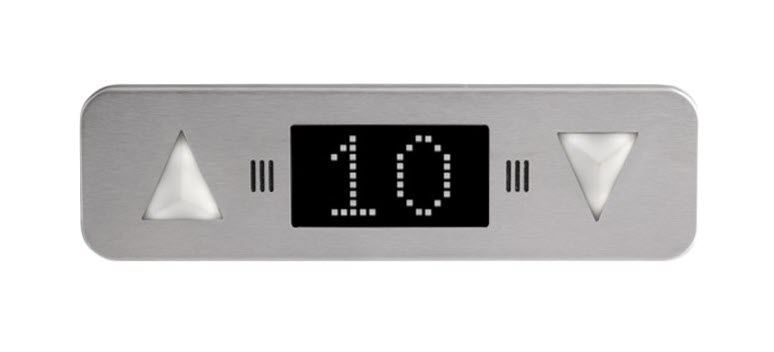

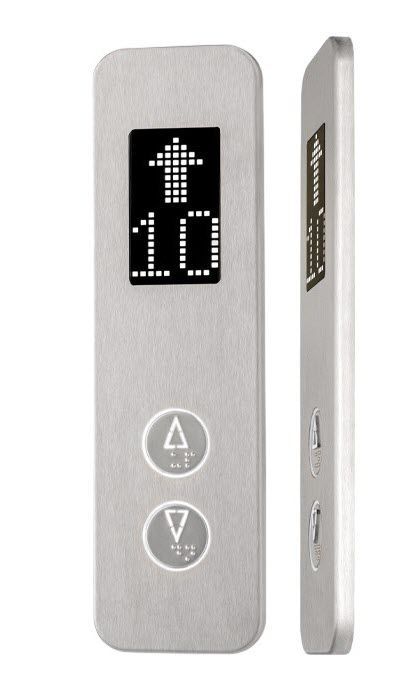

Compact

Ultraslim Stainless Steel Fixtures

The Compact series offers an elegant, minimalist solution for lift modernisation and new installations where space and style matter. Crafted from high-quality 304-grade stainless steel and available in brushed or satin gold PVD finishes, these ultra-slim fixtures provide modern aesthetics without requiring any structural alterations to the building.

The system is fully pre-assembled and supplied with wiring looms to ensure quick and straightforward installation. An integrated electronic system with a clear dot matrix display and intuitive push buttons enhances user experience, while customisable configurations make it ideal for residential and commercial applications alike.

Key Features:

• Ultra slim profile: Only 10mm deep
• Durable 304-grade stainless steel faceplates
• Surface-mounted design – no need for structural modifications
• COP dimensions: 180mm (W) x 1000mm (H) x 10mm (D) (customisable height)
• LOP dimensions: 80mm (W) x 280mm (H) x 10mm (D)
• LIP dimensions: 300mm (W) x 101mm (H)
• Robust backing frame: zinc-coated for COP, ABS for LOP
• Finish options: Brushed stainless steel or satin gold PVD
• Integrated electronic system with dot matrix display
• COP supports up to 15 floors and 3 services
• Nylon push buttons with flush mounting, illuminable raised legend, and braille for accessibility
• Supplied pre-assembled with loom for fast and efficient installation
• Simple parallel wiring


Vision

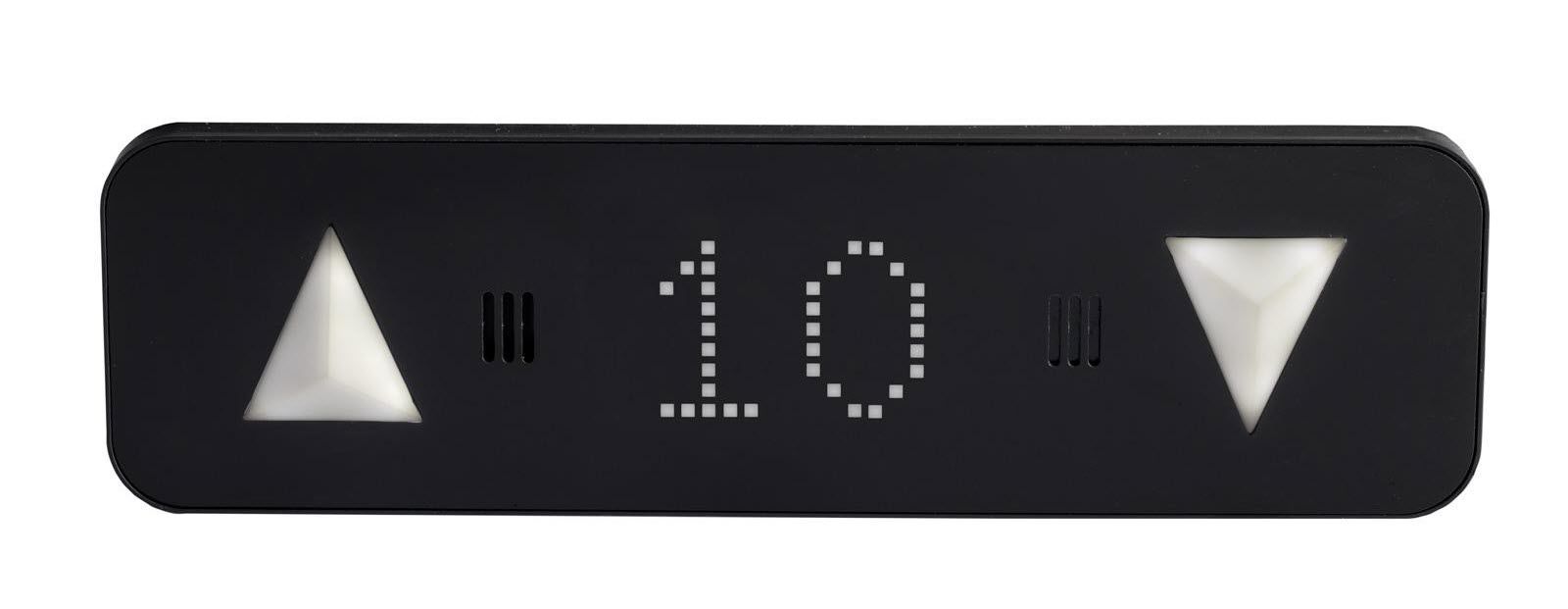

Ultraslim Black PMMA Fixtures

The Vision series delivers sophisticated design and exceptional functionality for modern lift interiors and landing stations. With its sleek, ultra-slim profile and refined surface in elegant black PMMA, Vision is the ideal choice for stylish upgrades and new installations where contemporary aesthetics and practicality are key.



Manufactured from high-quality black PMMA (polymethyl methacrylate), these surface-mounted fixtures provide a refined, minimalist look while eliminating the need for structural alterations — making installation quick and cost-effective. An integrated electronic system with a crisp dot matrix display ensures clear communication, while intuitive flush-mounted push buttons enhance accessibility and ease of use.

Key Features:

• Ultra slim profile: only 15mm depth for COP, 12mm for LOP
• Sleek and durable black PMMA faceplates for a modern look
• Surface-mounted design – no structural modifications required
• COP dimensions: 180mm (W) x 1000mm (H) x 15mm (D)
• LOP dimensions: 80mm (W) x 280mm (H) x 12mm (D)
• LIP dimensions: 300mm (W) x 101mm (H)
• Robust backing frames: zinc-coated for COP, ABS for LOP
• Integrated electronic system with dot matrix display
• COP supports up to 18 floors and 3 services
• Alpha Zamak push buttons with polycarbonate pressels with stainless steel finish, raised legend, and braille for accessibility
• Supplied pre-assembled with loom for rapid installation
• Simple parallel wiring

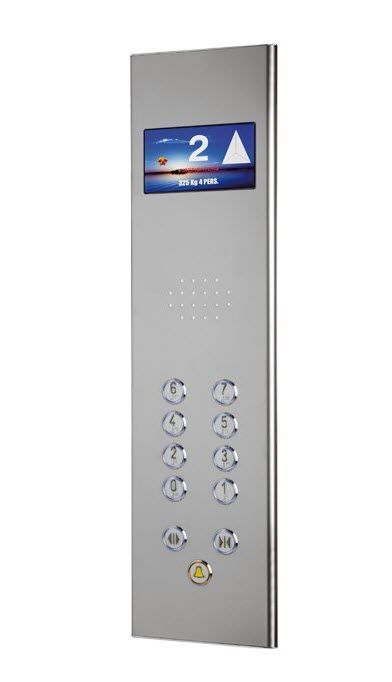

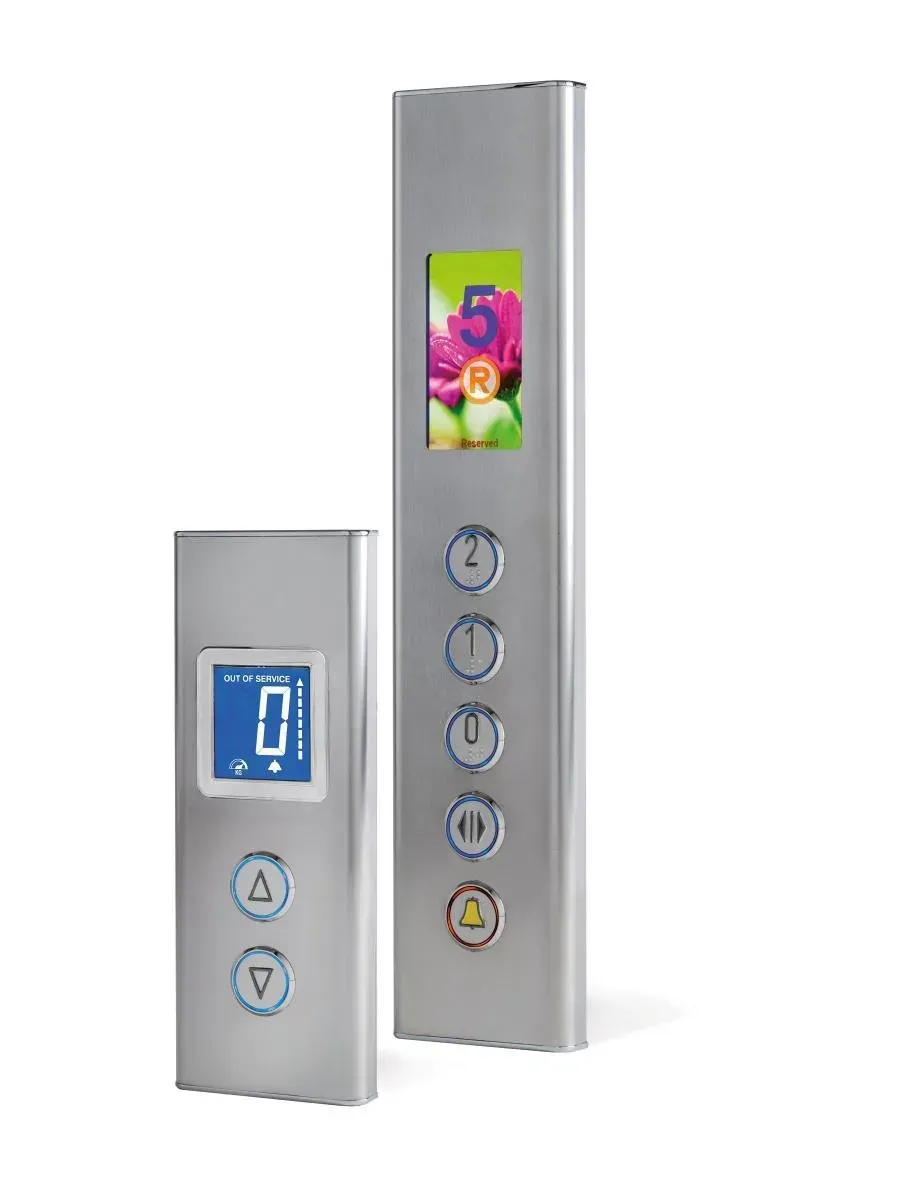

AIDA
Cost-Effective, Stylish, Stainless Steel Lift Fixtures

The AIDA series of Surface Mount panels offer a perfect blend of affordable quality, modern design, and installation efficiency — making it an excellent choice for cost-conscious lift upgrades and new installations. Crafted from durable stainless steel, AIDA panels deliver a sleek, minimalist finish that enhances any lift car interior or landing station without requiring expensive structural changes.

Supplied ready to install, these surface mount panels help reduce installation time, labour costs, and disruption to your building — all while providing reliable performance and long-lasting durability. AIDA’s flexible design options make it easy to achieve the look and function you need without compromising your budget.Key features:

• Cost-effective solution for local upgrades, modernisation and new installations
• Premium stainless steel for durability and a timeless look
• Surface mount design eliminates costly structural works
• Available in multiple finishes, sizes, and configurations
• Customisable button layouts to meet project requirements
• Reduces installation time and labour costs
• Suitable for both residential and commercial applications
• Wide range of finish options including brushed stainless steel, mirror stainless steel, brushed gold, mirror gold

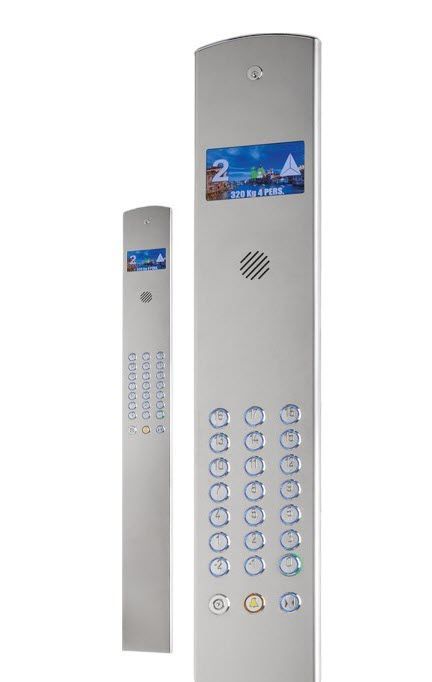

Colonna Car Operating Panels

Space-Saving, Cost-Effective Car Operating Panels for Lift Modernisation

The Colonna Car Operating Panel (COP) series offers a smart, space-saving solution for lift car modernisation and new installations — while keeping costs under control. Designed specifically for narrow lift cars and tight shafts, these compact COPs combine modern styling with durable stainless steel construction, delivering reliable performance without the expense of major structural works.

Colonna COPs are supplied pre-assembled and ready to install, helping reduce installation time, labour costs, and overall project disruption. To ensure a consistent, professional finish throughout your lift, the Colonna series can also be supplied with matching landing fixtures, providing a complete upgrade solution that’s cohesive and cost-effective for both residential and commercial lifts.

Key Features:

• Cost-effective COP solution for lift cars
• Slim, compact profile perfect for narrow car interiors
• High-quality stainless steel finish for durability and style
• Surface-mounted design — no costly wall recessing
• Surface mount with no backing box required
• Customisable height to suit any lift car layout
• Available in 201mm and 300mm widths
• Flat or curved endcaps for a tailored finish
• Pre-assembled for faster, easier installation
• Multiple button layouts and custom configurations
• Supplied with matching landing fixtures for a cohesive look
• Helps minimise downtime and labour costs
• Suitable for residential and commercial applications
