Micelect LM3D Load Weighing Controller

The LM3D universal control unit is the most complete control unit which has all the possible options available to control the load in elevators and lifts.


This control unit can be used with any load weighing sensor manufactured by MICELECT.


Models available:

  • DIN Rail
  • IP-65 rated plastic box


Key Features:

  • 3 Relays
  • Integrated software to correct weight increases due to compensating chain
  • Cabin indicator output

Micelect LMCAB Load Weighing Controller

The LMCAB control unit is specifically designed for use with the CAB load weighing sensors.


Models available:

  • DIN rail
  • IP-65 rated plastic box

Standard features

  • 2 relays
  • Cabin indicator output
  • Suitable for 8 sensors

Options:

  • Reinforced version for use with more than 8 sensors
  • 24VDC

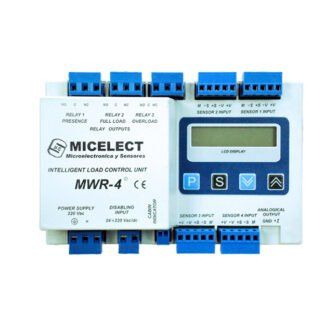

Micelect MWR-4 Load Weighing Controller

The MWR-4 control unit is specifically designed for use with the WR load weighing sensors. Up to 4 separate readings can be viewed at the same time, as well as the total for all 4.


Models available:

  • DIN rail
  • IP-65 rated plastic box

Standard features

  • 3 relays
  • Integrated software to correct weight increases due to compensating chain
  • Cabin indicator output
  • Suitable for four sensors

Options:

  • Analogue output in mA (0-20, 0-24, 4-20)

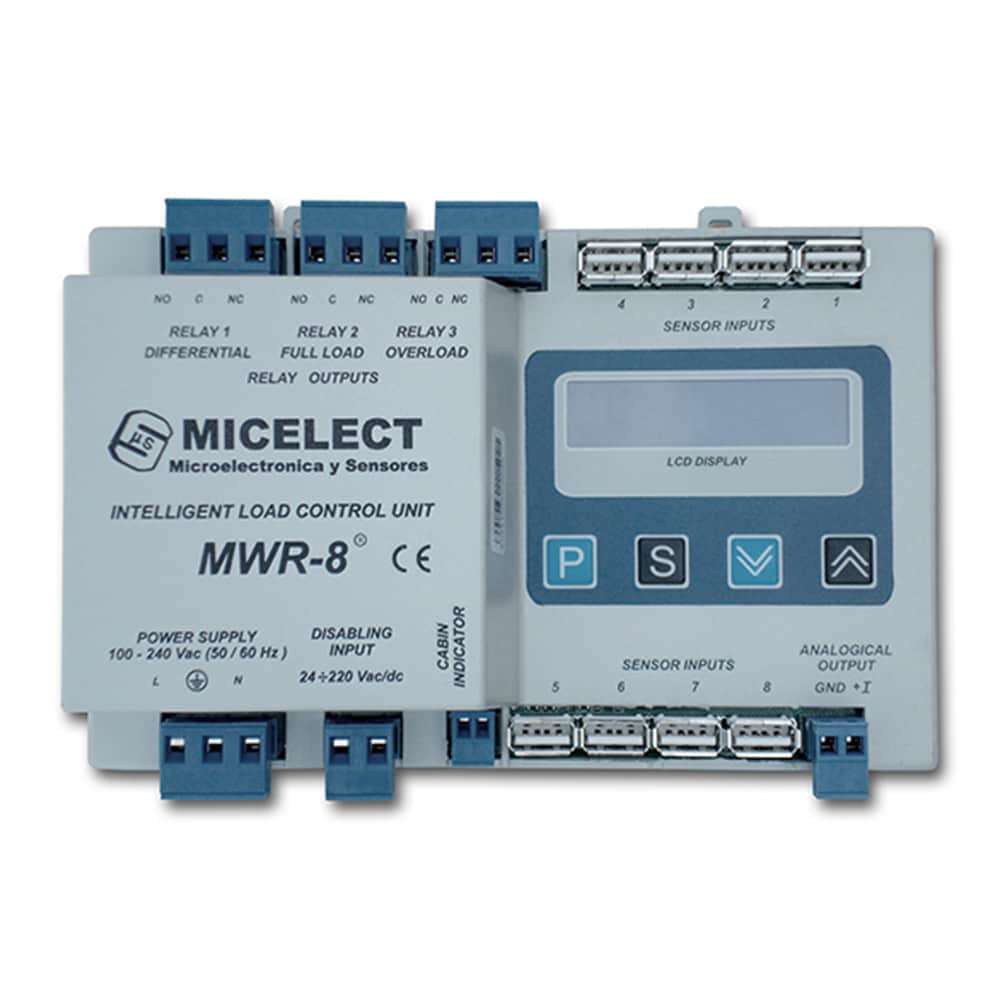

Micelect MWR-8 Load Weighing Controller

The MWR-8 control unit is specifically designed for use with individual WR load weighing sensors equipped with USB connectors.


Models available:

  • DIN rail
  • IP-65 rated plastic box

Standard features

  • 3 relays
  • Integrated software to correct weight increases due to compensating chain
  • Integrated software to control with an alarm if the tension balance between the ropes becomes unbalanced
  • Cabin indicator output
  • Suitable for eight sensors

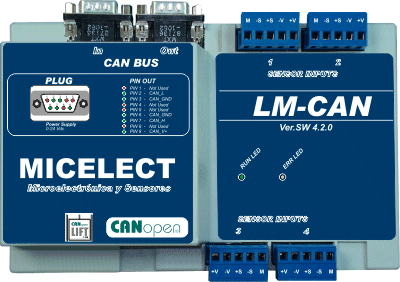

Micelect LM-CANopen® Load Weighing Controller

The universal LM-CANopen control unit can be used with all load weighing sensors manufactured by MICELECT.

This unit uses CANopen® communications protocol and its calibration and configuration are very easy.


Models available:

  • DIN rail
  • IP-65 rated plastic box

Standard features

  • CANopen® communications
  • Compatible with all sensors manufactured by MICELECT
  • Open Style connector according to DS 303-1
  • LEDs indicating the status of the node according to DS 303-3

Micelect LM-CANopen Load Weighing Controller

The new universal LM-CANopen control with display unit can be used with all sensors manufactured by MICELECT. This unit uses CANopen® communications protocol and its calibration and configuration is very easy.

Models available:

  • DIN rail
  • IP-65 rated plastic box
  • 8 Inputs
  • 16 Inputs
  • CAN Proprietary protocol
  • Alternative versions with CAN proprietary protocol

Standard features

  • CANopen® communications according to Cia 417
  • Compatible with all load weighing sensors manufactured by MICELECT
  • Up to 16 individual sensor measures.
  • High sampling speed
  • Non-connection sensor detection (EMCY codes)
  • CAN-bus connection: DS 303-1 (Open Style Connector or 9-pin D-sub connector)
  • LEDs indicate the status of the node according to DS 303-3
  • CANopen alarms:
  • Zero-Load
  • Normal-Load
  • Full-Load
  • Overload
  • Slack rope
  • Difference of rope
  • LCD and buttons to view and set all CANopen and manufacturer parameters
  • Update firmware button through CANBus connector (with PCAN adapter)
