Compact DMX
Key features:
- Ultra Slim stainless steel, 304 grade
- Surface mount without building alterations
- COP: 180mm (w) x 1000mm (h) x 10mm (d) (customisable height)
- LOP: 80mm (w) x 280mm (h) x 10mm (d)
- Backing frame: zinc-coated for COP and ABS for LOP
- Finish options: Brushed stainless steel or satin gold pvd
- Integrated electronic system with dot matrix display
- COP configuration: Up to 15 floors and 3 services
- Push buttons: Nylon with flush mounting including illuminable raised legend and braille
- Pre-assembled and supplied with loom for fast installation
- Wiring: Parallel
Vision
Key features:
- Surface mount without building alterations
- COP: 180mm (w) 1000mm (h) x 15mm (d)
- LOP: 80mm (w) 280mm (h) x 12mm (d)
- Black frame: zinc coated for COP and ABS for LOP
- Material: Black PMMA, engineered plastic
- Integrated electronic system with dot matrix position indicator
- COP configuration: Up to 15 floors + 3 services
- Push buttons: Alpha zamak including illuminable raised legend and braille
- Pre-assembled and supplied with loom for fast installation
- Wiring: Parallel
AIDA
Key features:
- Surface mount without building alterations
- Suitable for new lift installations, modernisation and local upgrades
- Four widths available: 65mm, 85mm, 101mm and 201mm
- 1.2mm thick stainless steel surface for 201mm width
- 1mm thick stainless steel surface for 65mm, 85mm and 101mm widths
- Flat end caps (AIDA Standard) or curved (AIDA Curve) are available for all types
- Finish options: Brushed stainless steel, mirror stainless steel, brushed gold, mirror gold
- Landing indicator fixtures are available with directional arrows or displays
- Duplex landing call fixtures are available with dual displays
Florence
Key features:
- Surface mount without building alterations
- Suitable for new lift installations, modernisation and local upgrades
- 1.5mm thick stainless steel surface
- Car operating panel dimensions: 201mm (w) x 1200mm (h)
- Landing operating panel dimensions:
Terminal floor with display: 101mm (w) x 257mm (h)
Intermediate floor with display: 101mm (w) x 307mm (h)
Terminal/Inter floor without display: 101mm (w) x 227mm (h)
- Finish options: Brushed stainless steel, mirror stainless steel, satin PVD gold, mirror PVD gold, polished black, satin black, polished blue
- Landing indicator fixtures are available with directional arrows or displays
- Duplex landing call fixtures are available with dual displays
TOSCA
Key features:
- Surface mount without building alterations
- Suitable for new lift installations, modernisation and local upgrades
- Finish: Dual stainless
- Suitable for new lift installations, modernisation and local upgrades
- 1.2mm thick stainless steel surface
- Car operating panel dimensions: 201mm (w) x 1200mm (h)
- Landing operating panel dimensions:
Without display: 101mm (w) x 247mm (h)
With display: 101mm (w) x 365mm (h)
- Metal end caps available in two widths: 101mm and 201mm
- Finish options: Brushed stainless steel, mirror stainless steel, satin PVD gold, mirror PVD gold, polished black, blue night
- Landing indicator fixtures are available with directional arrows or displays
- Duplex landing call fixtures are available with dual displays
Bugatti
Key features:
- Deep drawn surface mounted fixture with quick fixing on the wall without visible screws using a hidden plastic blocking tool
- Suitable for new lift installations, modernisation and local upgrades
- 0.7mm thick stainless steel body
- Available for a single push button, 2 push buttons, 3 push buttons, 1 landing display with a maximum of 2 push buttons
- ICARO display is available in the black/blue and parallel/ serial versions
- Finish options: Brushed stainless steel, brushed gold, black
- Logos and text can be printed

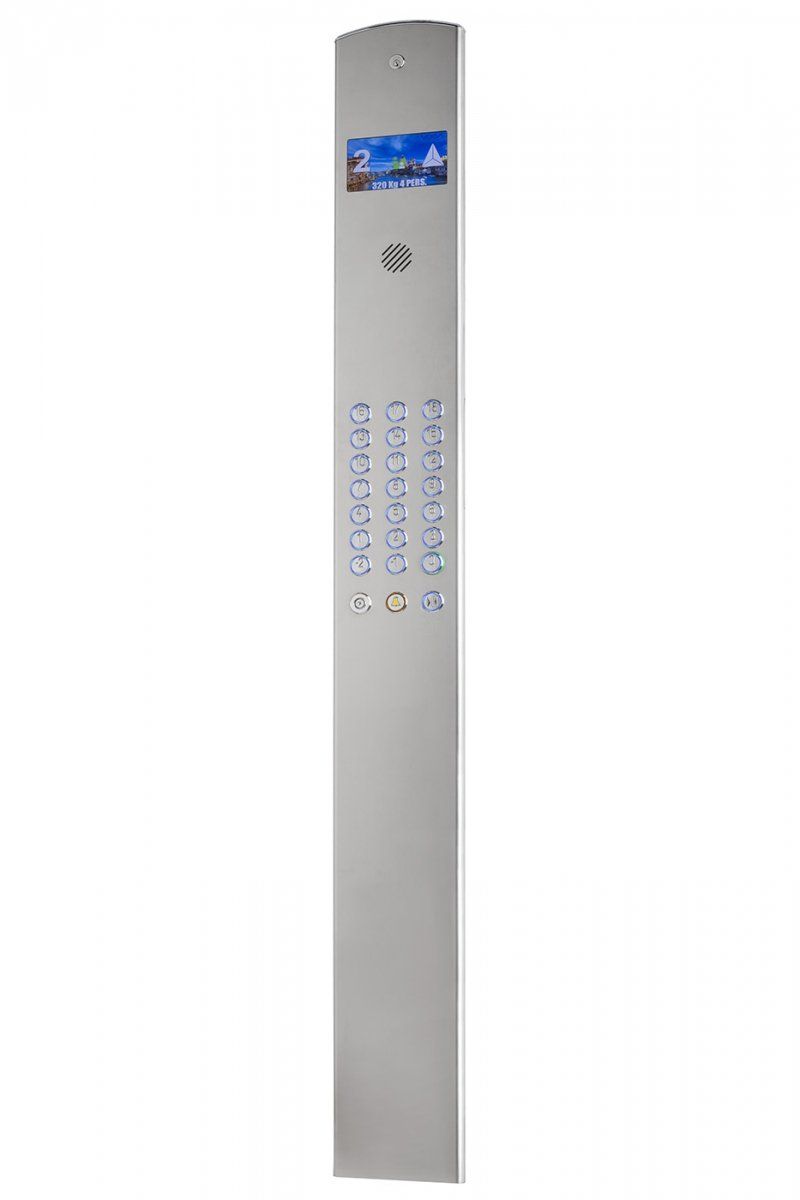

Colonna Car Operating Panels
Key features:
- Full height surface mounted car operating panels, Florence and Aida Model
- Available with square or curved end caps
- Width options: 201mm and 300mm
- Column can be opened using Vasistas system with key or fixing by screws
- Customizable height
- 1.2mm thick stainless steel faceplate
- Backing box not required
- Finish options: Brushed stainless steel, mirror stainless steel, brushed PVD gold, mirror PVD gold
- Alternative options available with customizable profiles
