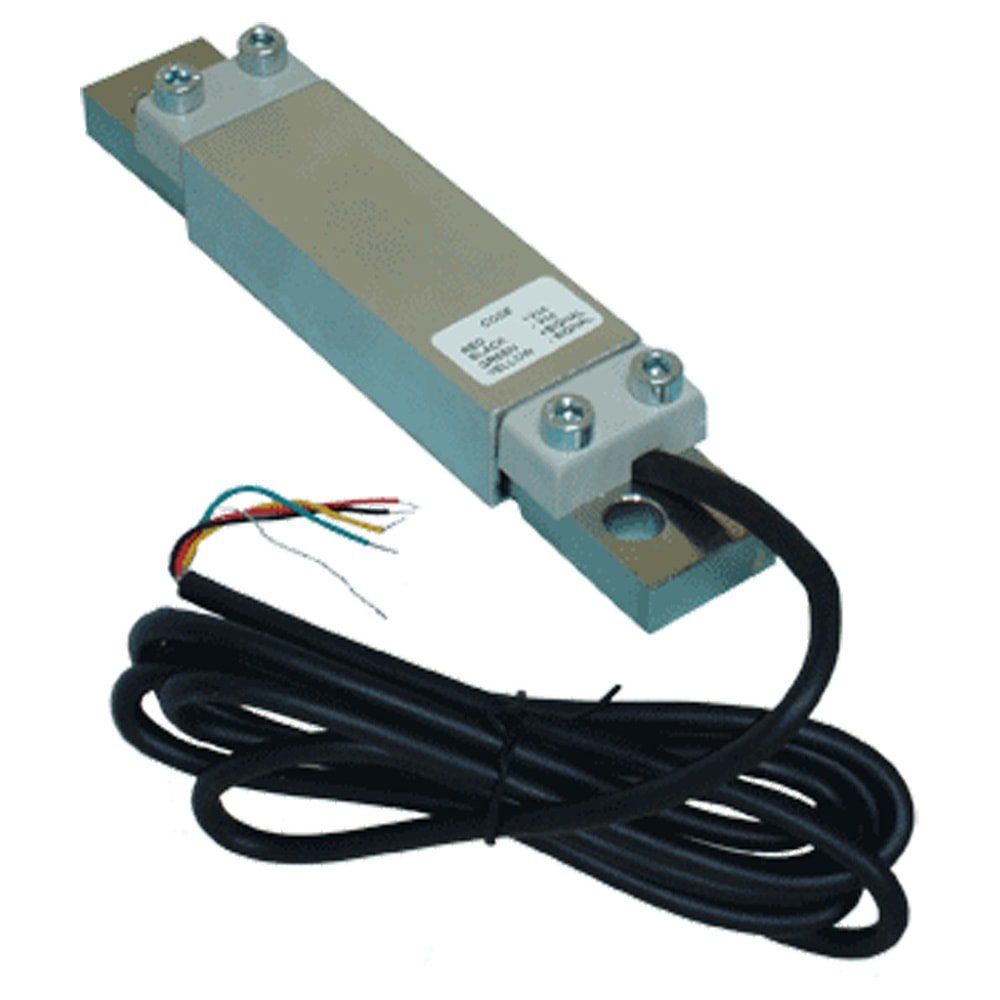

Micelect Beam Sensors
The VG Beam & Mini Beam sensors provide an accurate and reliable solution for controlling the load in all types of lifts. The VG beam sensor takes weight measurements through the deflection of the crosshead beam on which it is mounted.
This solution is particularly recommended for large elevator cabins and freight lifts due to the fact that it has unlimited capacity. This solution can be used both for new installations and modernizations.
Key Features:
- Accurate and reliable solution for controlling the load in all types of lifts
- Unlimited capacity
Micelect Bedframe CCP Sensor
The CCP sensor provides an alternative solution for controlling the load in installations where it is not possible to install other devices.
The fact that this device can be used with all types of roping 1:1, 2:1 & 4:, make it a good alternative solution in complicated installations.
Two different versions CCP-2000 and CCP-4000 for 2000Kg and 4000Kg loads.
Key Features:
- Calibration with test weights
- High capacity
CAB - Load Weighing Sensor
CAB load weighing system provides the most precise solution for controlling the weight in any type of lift.
The reliability of this solution means it is recommended for any installation in which it is necessary to control the load with a high level of accuracy, such as installations which require the detection of “presence” inside the cabin.
This solution is recommended for any new installation, or installations in which a high level of accuracy and reliability is required.
Two different versions CAB-800 and CAB-200 for 800Kg and 200Kg loads.
Key Features:
- Unparalleled accuracy and reliability
- No need for maintenance
- Automatic calibration, meaning no need for test weights
- Total accurate
Micelect Hitch Plate Sensor
The HPS individual wire rope sensor provides an easy and precise solution for controlling the load in traction lifts by measuring the individual tension on each wire rope.
When used with the MWR-4 or MWR-8 control unit, it becomes the perfect solution for installations where it is necessary to monitor the balance of the rope tensions, or where there is extremely limited headroom.
Another option with LM3D box control and USB-BOX the total weight sum of all the cables will be obtained.
This solution is recommended for any new installation, or installations in which a high level of accuracy and reliability is required.
Key Features:
- Unparalleled accuracy and reliability
- No need for maintenance
- Automatic calibration, meaning no need for test weights
- Reduced dimensions
- For any type of wire ropes and flat belts
- Quick and easy installation (5 Mins.
Micelect Rope Mounted Sensors
Micelect rope mounted sensors provide an easy and precise way to measure the load in traction lifts. Theses sensors are easily installed on a multitude of roping ratios and can be calibrated using the auto-calibration method using the diameter of the ropes.
They are the perfect solution for lift modernisations.
Key Features
- Easy and precise way to measure the load in traction lifts
- Easily installed on a multitude of roping ratios
- Calibrated using the auto-calibration method using the diameter of the ropes
- Perfect solution for lift modernisations
Available options:
- ILC2: 2x programmable alarms: Full load & Overload
- ILC3: 3x programmable alarms: Presence, Full load & Overload
- ILC-CANopen: The unit uses CANopen® communications protocol and its calibration and configuration are very easy
- LMC: The LMC wire rope sensor provides an easy and precise solution for controlling the load in traction lifts with all types of roping (1:1, 2:1 & 4:1)
- WR: The WR individual wire rope sensor provides an easy and precise solution for controlling the load in traction lifts.
Hydraulic Load Sensor
The SPB electronic pressure sensor provides an easy and precise solution for controlling the load in hydraulic lifts. Its quick and easy installation and automatic calibration (5 mins.) make it the perfect solution for both new installations and modernisations.
Key Features:
- Automatic calibration, meaning no need for test weights
- Quick and easy installation (5 mins.)
- 2 programmable alarms: Full load and Overload
- Integrated display to show weight values in bars
- EEPROM data memory

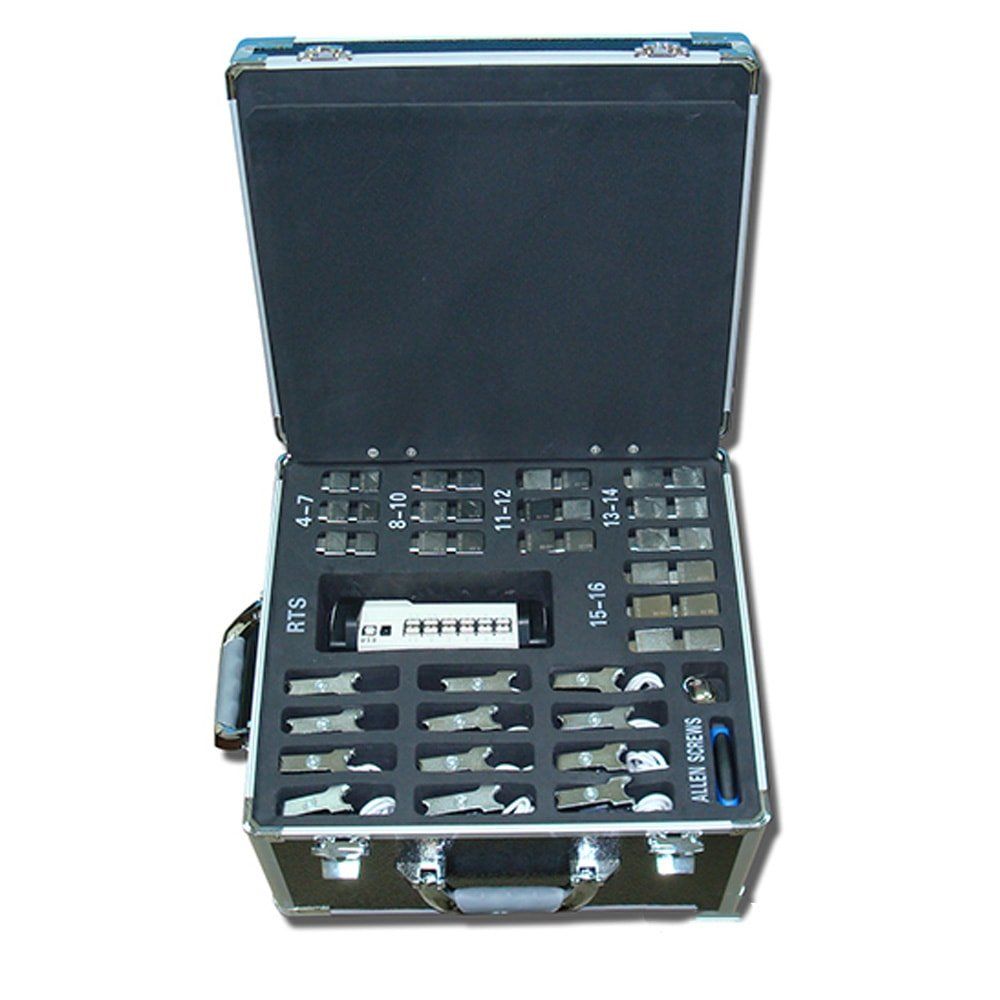

Micelect Portable Rope Tensioning System
The Micelect RTS device is a precision tool for accurately balancing the tension in a lifts wire ropes. It’s high level of precision and ease of use make it an essential tool for installers and maintenance workers alike.
Key features:
- Precision tool for accurately balancing the tension in a lifts wire ropes
- High level of precision
- Easy to use
