Bespoke Design & Fabrication
Whether the job is for a new lift, modernisation or local upgrade, we can manufacture and supply any fixture that is required. We specialize in customized fixtures, and can supply fixtures in various types of materials, including brass, glass, composite and specialized metal finishes and colour coatings.
We work closely with lift companies, architects, and building owners to ensure an unsurpassed level of quality in each project.
Summary of options:
- Available pre-assembled and pre-wired
- Hinged or fixed car operating panels
- Hidden fixings
- Flush or surface mount options
- Wide range of indication and multimedia display screens: 3.5" - 38"
- Touch display screens
- Traditional button grouping or variations
- Backfilled engraving or laser etching
- Antibacterial push buttons
- Antimicrobial push buttons
- Touchless push buttons
- Integrated emergency lighting
- Tinted perspex cover for security card readers
- Service cabinet
- Wide range of finishes including brushed stainless steel, linished stainless steel, brushed gold, mirror gold, brass, black, glass, textured, heritage
Flush Mount Landing Indicator
Key features:
- Flush mount
- Dimensions: 300mm (W) x 110mm (H)
- 2mm stainless steel faceplate
- Green and red lanterns illuminate direction of travel
- Arrows can take signal directly from the elevator
- Alternatively, if an Avire screen is used in the COP, signalization can be driven from the display
- Gong can be driven from the elevator
- Adjustable gong volume
- Requires cavity in the wall for flush installation
- Alternative finishes are available upon request
Surface Mount Landing Indicator
Key features:
- Surface mount
- Dimensions: Customisable
- 2mm stainless steel faceplate
- Hole mounting diagram included
- Integrated E-Motive (Avire) position indicator display
- Integrated gong can be driven from the elevator or from encoder board
- Gong cutout pattern for even sound distribution
- Adjustable gong volume
- Alternative finishes are available upon request

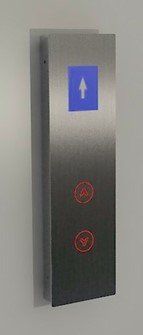

Lift Space Landing Operating Panels
Key Features:
- Surface mount
- Dimensions: 430mm (H) x 120mm (W)
- 2mm Stainless Steel faceplate
- Stainless Steel surround
- Dewhurst push buttons
- Integrated gong
- Integrated E-Motive (Avire) display
- Hole mounting diagram included
- Finish: No.4 Stainless steel
- Alternative finishes are available upon request
- Option to include 3 buttons or key switch

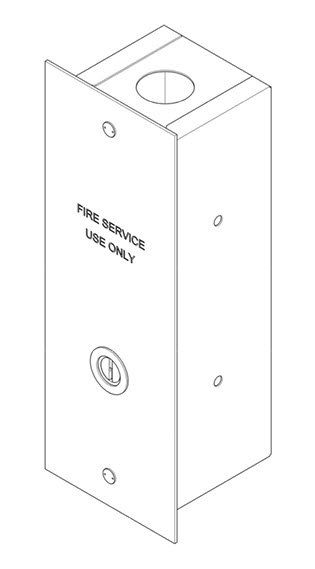

Fire Recall Fixture
Key features:
- Flush mount
- Supplied complete with backing box, engraved faceplate, TOK key switch and security screws
- Finish: 2mm Brushed stainless steel faceplate
- Backfilled engraving: ‘FIRE SERVICE USE ONLY’
- Includes 2x anti-theft screw head fixings for the face plate
- Cavity enclosure with internal mount holes
- Cable entry either top or bottom with 35mm opening for cable entry
- TOK 9 key switch to meet NZ fire requirements
