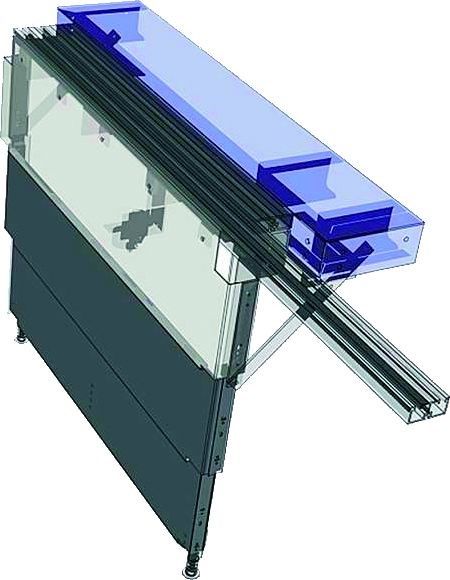

Telescopic Car Apron – EN81-20/50 Compliant (Low Pit Design)
Telescopic car aprons (also known as telescopic toe guards or collapsible aprons) are engineered for lifts with reduced pit depths, this telescopic car apron provides enhanced passenger safety by automatically extending to protect the shaft opening when the lift is above floor level.
Ideal for installations with a
minimum pit depth of 400 mm, this robust system ensures full compliance with EN81-20/50 safety standards.
Features and benefits:
- Fully compliant with EN81-20 and EN81-50 safety requirements
- Compact design suitable for space-constrained pits with pit depths as low as 400mm
- Automatic extension and retraction with electromechanical control
- Provides critical fall protection when the car is above the landing
- Durable galvanised finish ensures corrosion resistance and longevity
- Available in multiple widths to suit a range of car openings (700–1300 mm)
- Pre-assembled components for easy installation and maintenance
- Construction: 3-piece telescopic apron, galvanised sheet steel
- Power Supply: 24 VDC
- Service Output: 12W
- Initial Output (Startup): 24W max
- Position Monitoring:
- End-position switch with 1x Normally Open (NO) and 1x Normally Closed (NC) contact for safe retracted-position feedback
