Folding Maintenance Support – EN81-20 Compliant Pit Protection

The folding maintenance support is specifically designed to create a temporary protected space in the lift pit, offering a safe refuge area for maintenance personnel during inspection and service work. Its low-profile design (only 140 mm high when folded) makes it suitable for installation in very shallow pits where space is limited.

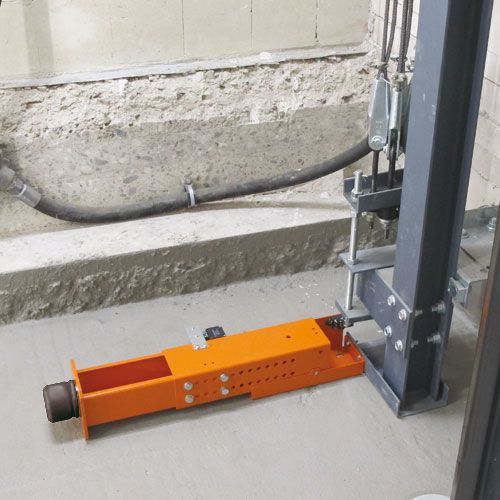

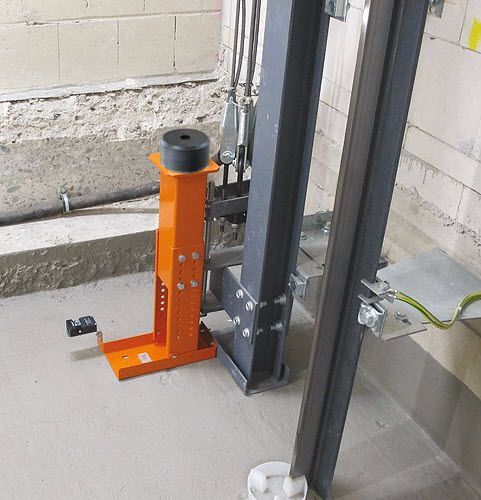

During normal operation, the support lies flat on the pit floor. When access to the pit is required, the support is easily folded into a vertical position, where it automatically locks into place. Releasing the lock allows it to return to its resting position. Both states are monitored by an IP67-rated safety switch with forced disconnection, ensuring compliance with EN 81-20:2014 clause 5.2.5.8.1.


Key features:


  • Fully compliant with EN 81 safety standards
  • Enables creation of a safe space in the pit for one person, as required under EN 81-20
  • Low installation height allows for use in restricted pit environments
  • Automatic locking mechanism for secure vertical positioning
  • Safety-monitored in both folded and deployed states
  • Optional lift buffer mounting capability
  • Highly visible finish for enhanced safety and visual awareness
  • Quick and easy installation with all fixings provided
  • Vertical heights / Horizontal lengths:
  1. Size 1: 500–770 mm (vertical) × 630–900 mm (horizontal)
  2. Size 2: 700–1000 mm (vertical) × 820–1150 mm (horizontal)


  • Write your caption here
  • Write your caption here
    Button

Fixed Pit Prop – Under-Car Support (EN81-20 Compliant)

The fixed pit prop is a robust under-car safety support designed to provide permanent protection in the lift pit during maintenance, inspection, or emergency situations. Installed directly beneath the lift car, it offers mechanical redundancy by supporting the car if it descends unexpectedly, ensuring compliance with safety requirements set out in EN 81-20.


Key features:


  • Provides a fixed mechanical stop to prevent car overtravel during servicing
  • No moving parts – zero risk of operational failure
  • Ideal for buildings where regular maintenance access to the pit is required
  • Low-maintenance solution – no need for adjustment or repositioning
  • Can be used in combination with folding pit supports or buffer zones
  • Available in 2.5m or 3.0m
  • Supplied complete with fixed yellow pit prop, floor socket, safety switch and wall storage bracket
  • Safe working load (SWL): 3000kg
