Whitesmith Solutions supply a complete range of lift controllers

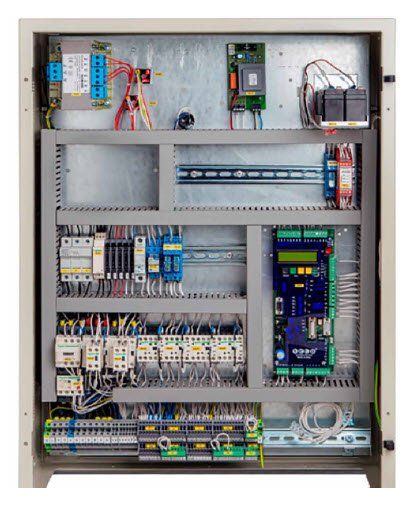

LCP Hydraulic HomeLift Controller

Small and compact, the LCP platform controller with the SMART control board is the best that the market can offer. Dedicated to more simple plant management, such as platforms, the LCP controller includes all the essential functions of a simple, affordable product. The configuration with a serial communication system at landings and in the car allow provide for reduced cabling costs and installation time.

The available options range from the Industrial Platform with Man Present Mode to Homelift with automatic doors and single-call Manouvre.

Key features:

Starting: Direct - 1 or 2 speeds
Nominal speed: 0.15 m/s
Re-levelling: Included
Door: Manual / Automatic VVVF
Car positioning by: Magnetic sensors
Connection type: Parallel / Serial - VEGA Protocol
Cabinet dimensions 500mm (H) x 600mm (W) x 250mm (D)

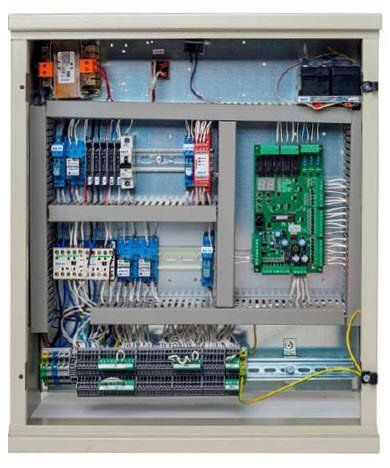

LCP Hydraulic Controller

Dedicated to hydraulic plant, the LCP controllers are able to satisfy your needs. The controllers are all powered by the highly reliable control boards, offering outstanding performance and are specifically designed to work with both in-house-manufactured equipment (for new installations) and a wide variety of other third-party equipment (for system modernization when it is necessary to re-use existing accessories).

The LCP range of control boards allows a wide range of serial/parallel configurations depending on your needs. The options available work with an extensive range of hydraulic system designs and a wide variety of hydraulic control valve blocks with

differing speeds and control voltages.

All controllers are complaint with EN81-20 / EN81‑50

Key features:

Starting: Direct / Star/Delta / SoftStarter
Nominal speed: 0.6 m/s
Re-levelling: Included
Door: Manual / Automatic VVVF
Car positioning by: Magnetic sensors / Absolute Encoder on Car Roof
Connection type: Parallel / Serial
Cabinet dimensions: (HxWxD) 800mm (H) x 600mm (W) x 250mm (D)

LCP Traction AC2 Controller

Dedicated to traction plants, LCP controllers are able to satisfy your needs. The LCP traction controllers are all powered by our highly reliable control boards, offering outstanding performance and are specifically designed to work with both our own in-house-manufactured equipment (for new installation) and a wide variety of other third-party equipment (for system modernization when it is necessary to re-use existing accessories).

Controller options include:

Traction 2 speed (AC2)
Traction Geared VVVF

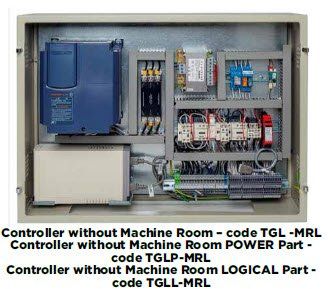

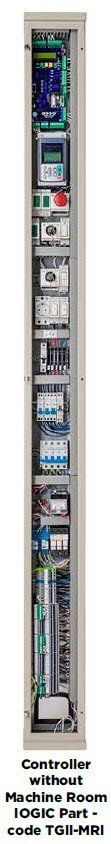

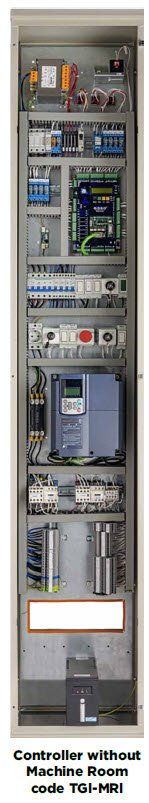

Traction Gearless VVVF (with Machine Room or Machine Room Less)

The LCP range of control Boards allows a wide range of serial/parallel configurations depending on your needs. Regarding VVVF Controllers, we have chosen a “GENERAL PURPOSE” Inverter, meaning an Inverter that can be used to run several brands of Geared/Gearless motor. We are able to manage various other kinds of inverter if required and if we don’t have already have the predisposition to manage a certain type of inverter, we will be happy to adapt to your requests thanks to the enormous

flexibility of our software.

All controllers are complaint with EN81-20 / EN81‑50

Key features:
