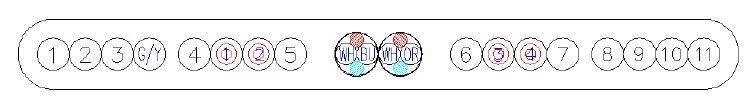

Fibre Optic Travelling Cable

Unsupported

The Datwyler Fibre Optic Elevator Travelling Cable is specifically engineered for high-speed data transmission in vertical lift applications. Designed to maintain stable signal integrity under continuous movement, this cable delivers superior performance for modern elevators that require reliable fibre connectivity for advanced systems such as multimedia displays, CCTV, intercom, and building management networks.


Key features:


  • Cable Type: Flat travelling cable
  • Support Type: Unsupported
  • Cores: 12 x 1.0 mm² + 2 x (2 x 0.5 mm²) control pairs + 4 x Fibre Optic cores (OM2)
  • Applications: Data transmission and control in vertical lift installations
  • Maximum Travel Height: 45 m
  • Maximum Travelling Speed: 4.0 m/s
  • Approx. Dimensions: 56.2mm wide × 5.4 mm high

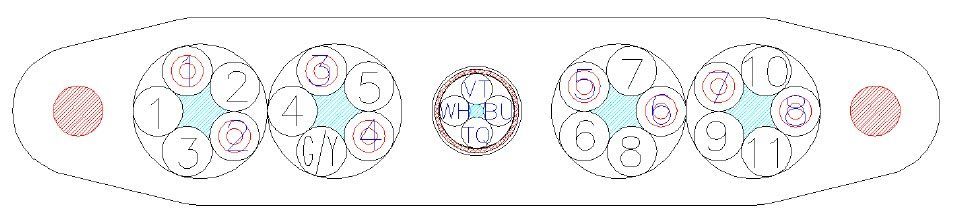

Single Mode Fibre Optic Travelling Cable

Supported

The Datwyler Fibre Optic Elevator Travelling Cable is specifically engineered for high-speed data transmission in vertical lift applications. Designed to maintain stable signal integrity under continuous movement, this cable delivers superior performance for modern elevators that require reliable fibre connectivity for advanced systems such as multimedia displays, CCTV, intercom, and building management networks.


Key features:


  • Cable Type: Flat travelling cable
  • Support Type: Supported
  • Cores: 12 x 1.0 mm² + 4 x 0.34 mm² control cores + 8 x Fibre Optic cores (SM)
  • Applications: Data transmission and control in vertical lift installations
  • Fibre Type: Single-mode (SM) fibre optic cores
  • Support Members: Steel rope Ø2.5 mm
  • Maximum Free Suspension Length: 80m
  • Maximum Travel Height: 150m
  • Maximum Travelling Speed: 6.3 m/s
  • Approx. Dimensions: 46.5mm wide × 10.0 mm high

Combination Cable - Unsupported

Key features:

  • Cores: 4x 1.5mm² + 2x (4 x 0.50mm²) Twisted Shielded Quad + 1 x 75ohm Coax
  • Applications: Security, networking multimedia display installations and data transmission
  • Unsupported
  • 45m (max.) free suspension length
  • 80m (max.) travel height
  • 4.0m/s max.) travelling speed
  • Dimensions (approx.): 32.9mm wide x 7.4mm high
  • Part number: 008003

Combination Cable - Supported

Key features:

  • Specification: 2 x 1.5mm² + 8 x (2×0.50mm²) Twisted shielded Pairs +1 x 75 ohm Coax + Steel wire ropes
  • Supported
  • Maximum free suspension length: 80m
  • Maximum travel height: 150m
  • Maximum travelling speed: 6.3m/s
  • Cable dimensions (approx.): 49mm wide x 7.1mm high
  • Applications: Control core, security, networking multimedia display installations, data transmission and telecommunications

Combination Cable - Supported

Key features:

  • Specification: 10x 2.5mm² + 18x 1.00mm² + 12x 2x 0.75mm² (FTP) + 2 FO G62.5/125 µm
  • Unsupported
  • Maximum free suspension length: 220m
  • Maximum travel height: 400m
  • Maximum travelling speed: 12m/s
  • Cable dimensions (approx.): 32.9mm wide x 7.4mm high
  • Applications: Control core, security, networking multimedia display installations, data transmission and telecommunications
