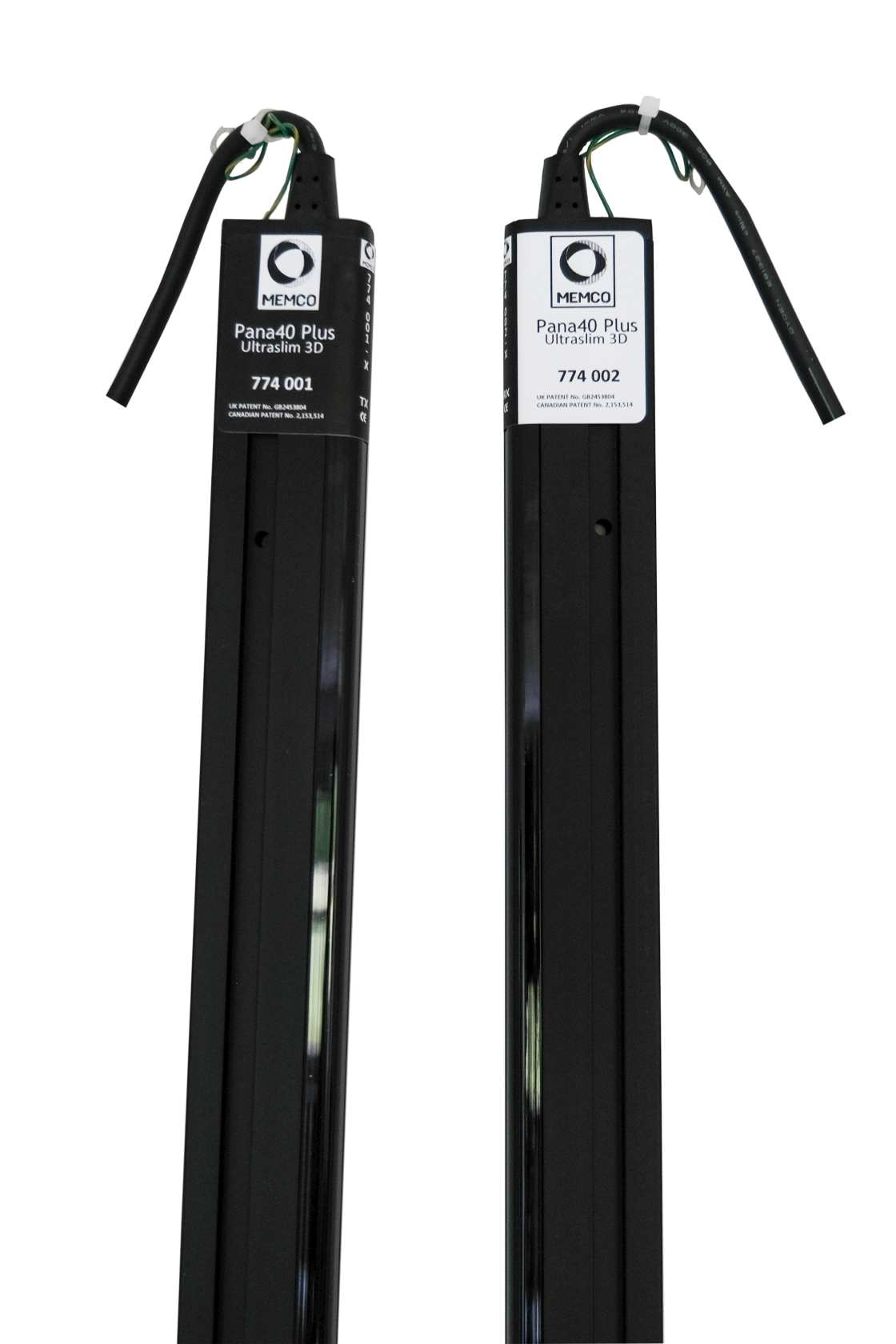

MEMCO Pana40+ Light Curtains
Premium 40-beam lift light curtain for reliable door safety and passenger protection.
The MEMCO Pana40+ is the most established lift light curtain in the MEMCO by AVIRE range, trusted worldwide for its exceptional quality, durability, and reliable passenger protection. Exceeding EN81-20 compliance, the Pana40+ provides full-height detection up to 1.8 m, with the option to configure either 40 parallel or 194 criss-cross infra-red beams for maximum coverage.
Available with optional 3D detection, Pana40+ extends the protection zone into the landing area — making it ideal for high-traffic and high-risk sites such as hospitals, hotels, and busy public buildings. With a wide range of profiles and flexible fixing kits, it’s suitable for any lift installation or modernisation project. An external controller ensures quick setup and easy configuration on site.
Key features:
- 194 criss-cross beams offer protection up to 1.8 m
- 2D and 3D detection models available
- 3D extended operating range further increases safety
- Suitable for centre-opening and side-opening doors
- External controller for quick setup and configuration
- Multiple profiles and fixing kits for any installation
- Self-drilling screw for fast, easy fixing
- 2D light immunity up to 100,000 lux
