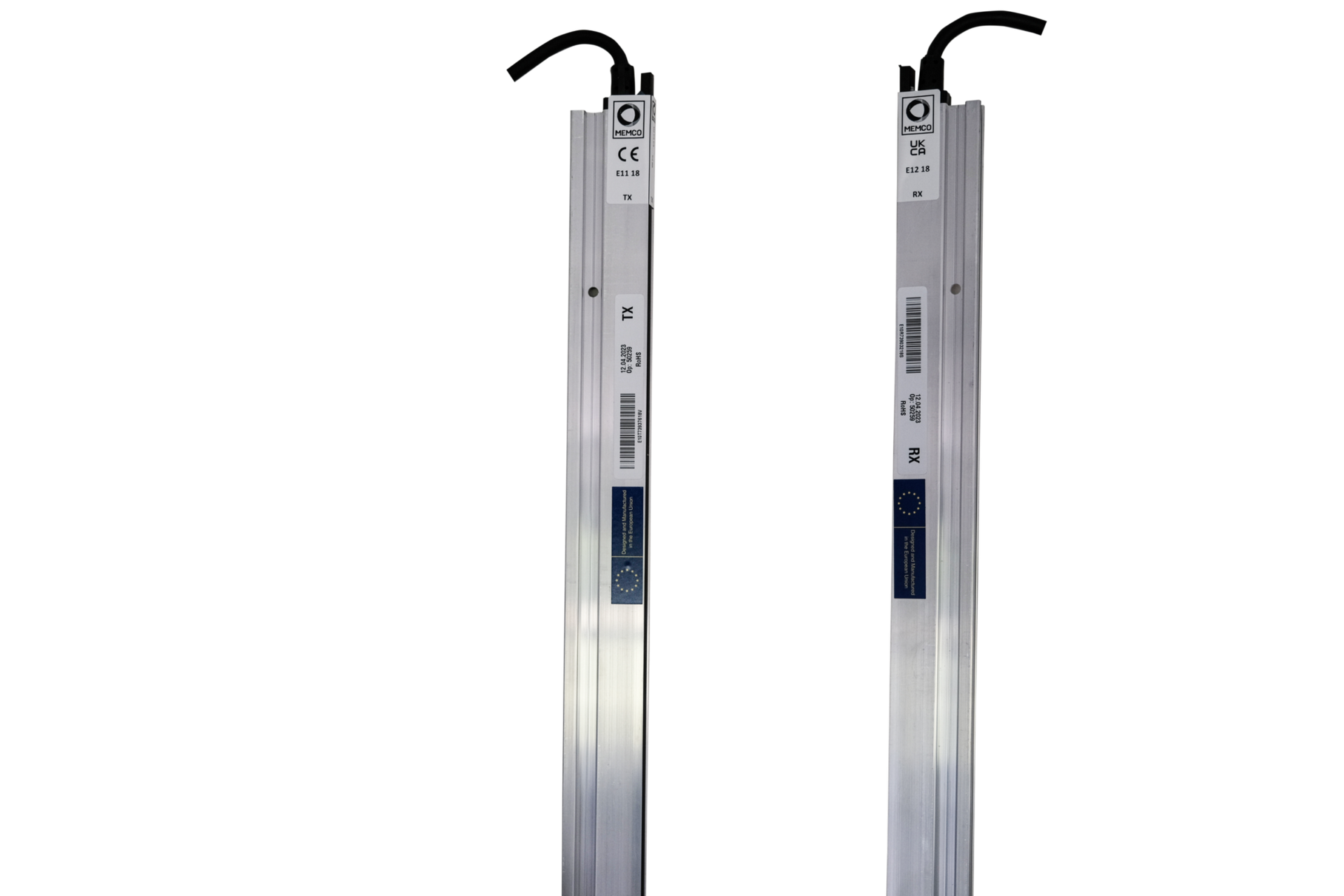

MEMCO E-Series Light Curtains
Reliable, Versatile Light Curtains - The Modern Replacement for the TL Jones Range
The Memco E‑Series range is the trusted successor to the TL Jones lift light curtains, offering robust performance, simple installation, and high safety standards.
Compliant with EN81‑20 and available in 20-, 36-, or 40‑diode versions, E‑Series delivers up to 174 criss‑cross infrared beams for full-height protection. Its rugged design—with no setup or communication wiring required—supports both new lifts and refurbishments, suitable for static or dynamic environments.
Built-in diagnostic LEDs, optional fault outputs, and tolerance to over 100,000 lux of ambient light ensure reliability in all conditions.
Key features:
- EN81‑20 compliant: Meets current lift safety standards
- Versatile diode options: 20, 36, or 40 diodes; up to 174 criss‑cross beams
- No configuration needed: Plug-and-play; no communication cable required
- Built-in diagnostics: LEDs and optional output signal faults to lift controller
- High light immunity: Tolerates over 100,000 lux of ambient infrared light
- Profiles for all installs: Available in 10 mm, 32 mm, and 40 mm profiles
- Works in any setting: Suitable for both static and dynamic installations
- Wide input voltage: Flexible 11–42 VDC range
